Jordan boiler repipe

We were hired to re-pipe this poorly installed Dunkirk steam boiler. Forget the poor choice in header material. The original design was just completely wrong. We re-piped with a drop header and then Mark insulated the piping as part of a bigger insulation job. (he had us insulate the entire system that was visible.)

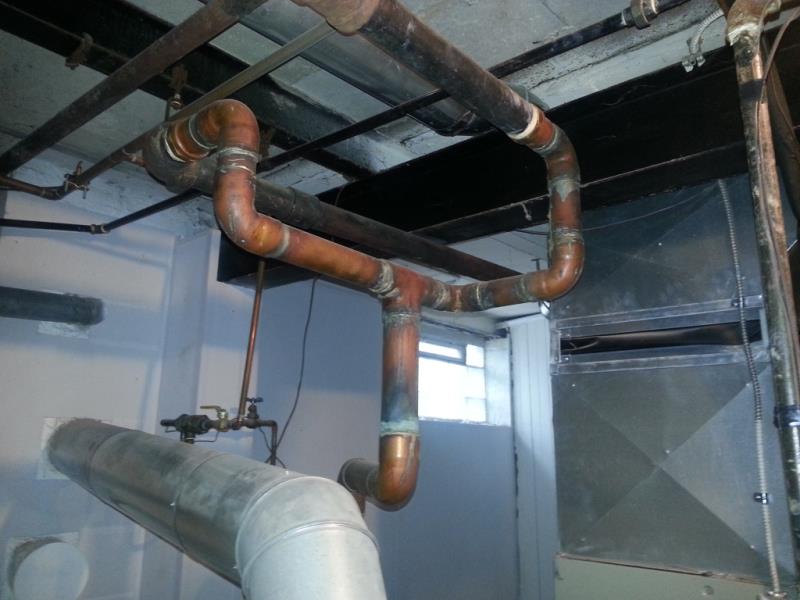

Original poorly installed 'header'.

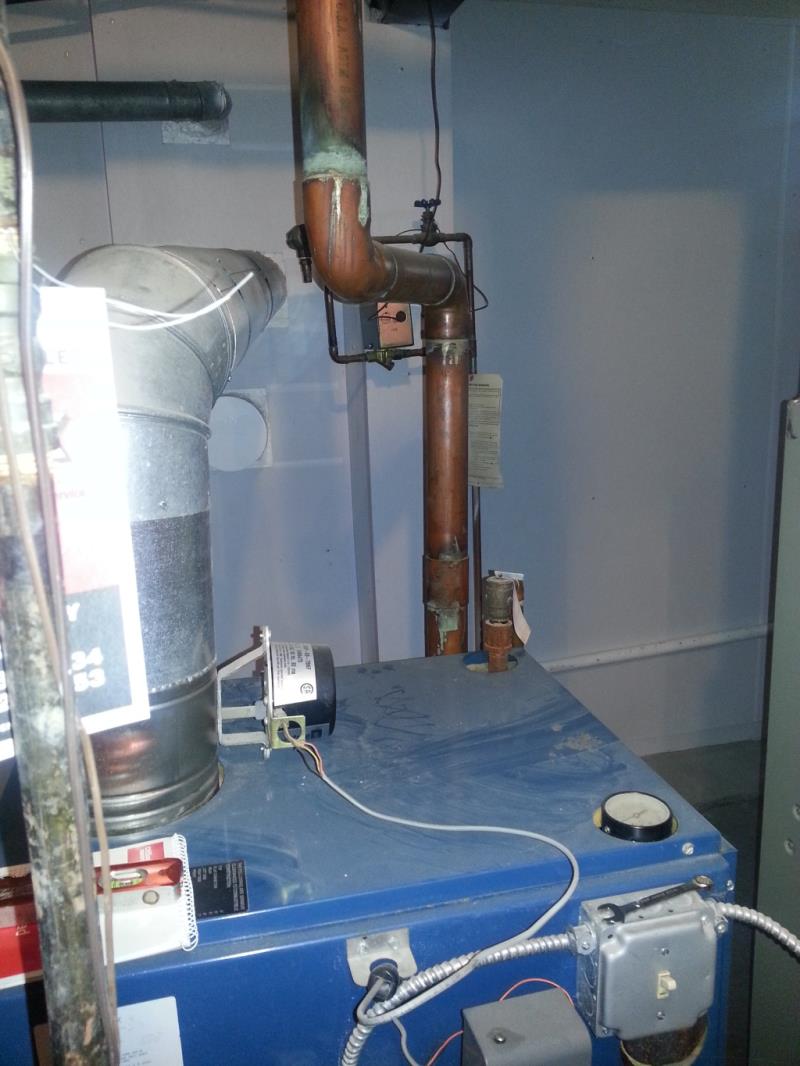

Incorrectly installed boiler riser.

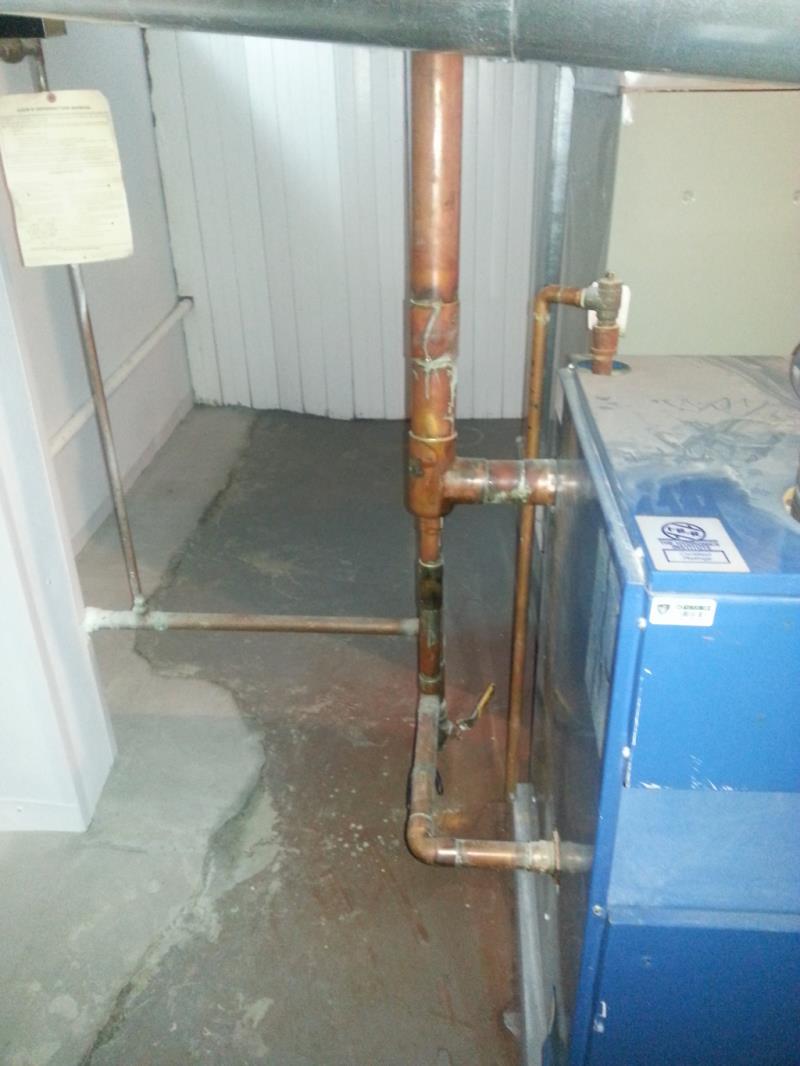

Another view of poorly designed piping.

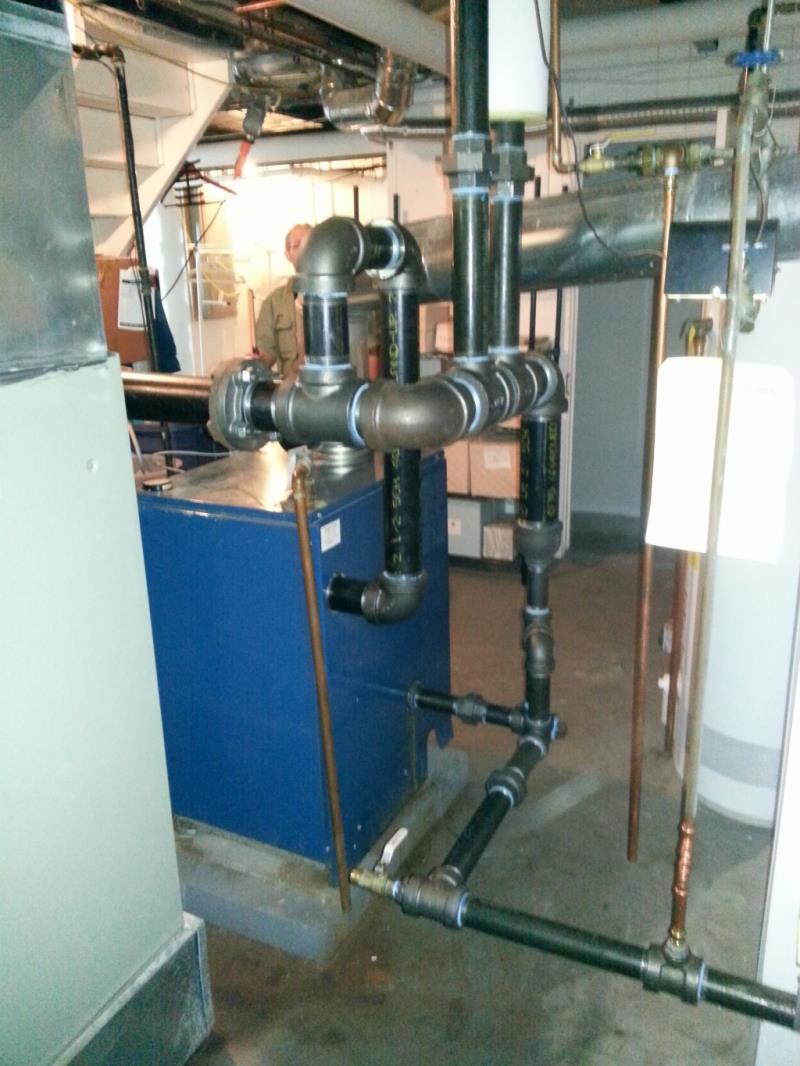

Boiler re-piped by Steve, Dan, and Paul.

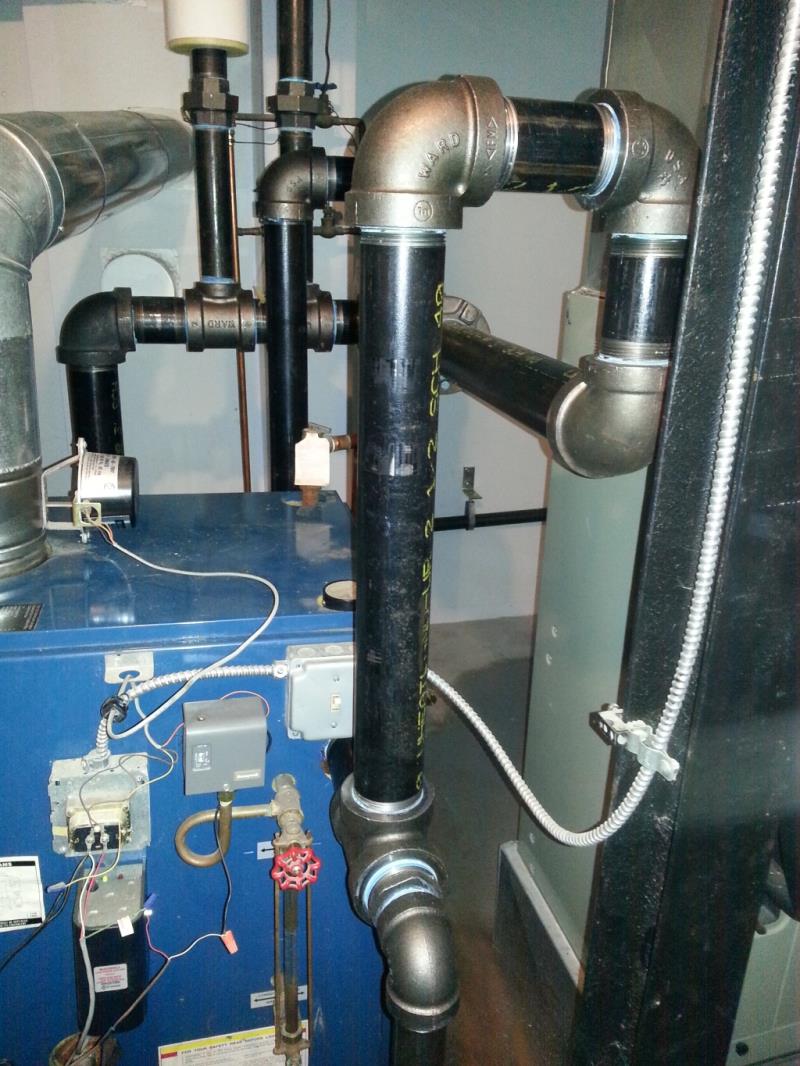

Redesigned equalizer and header view.

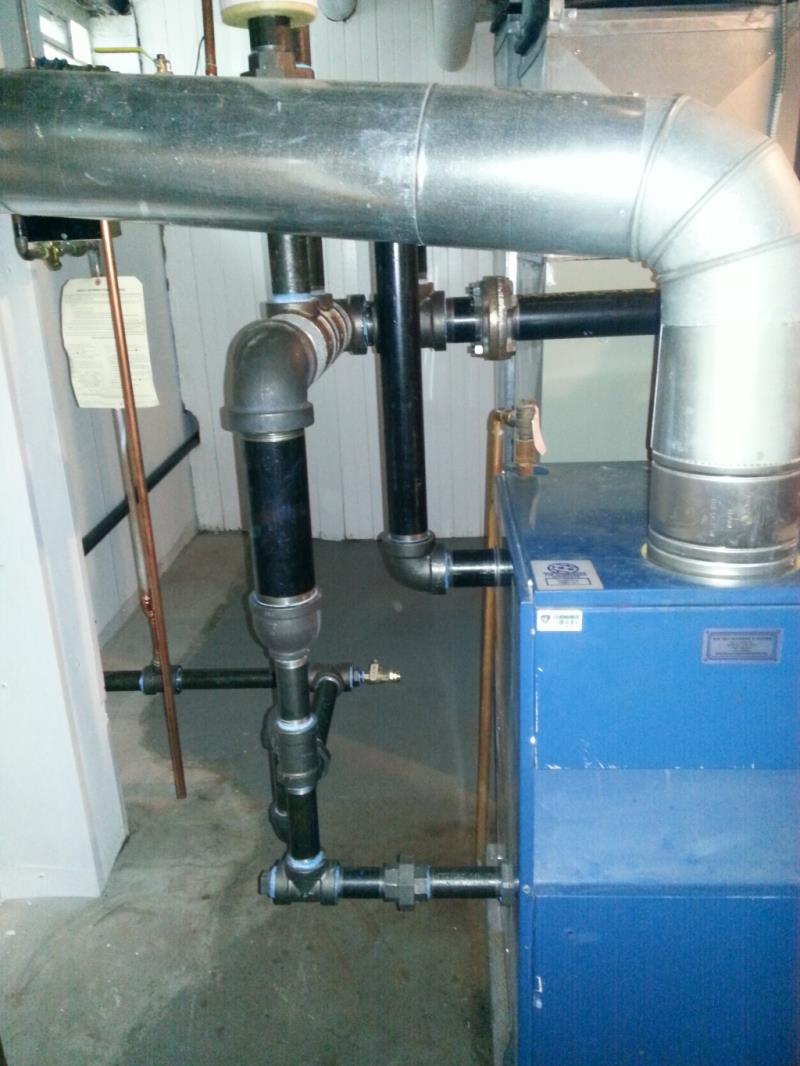

Side view of redesigned piping.

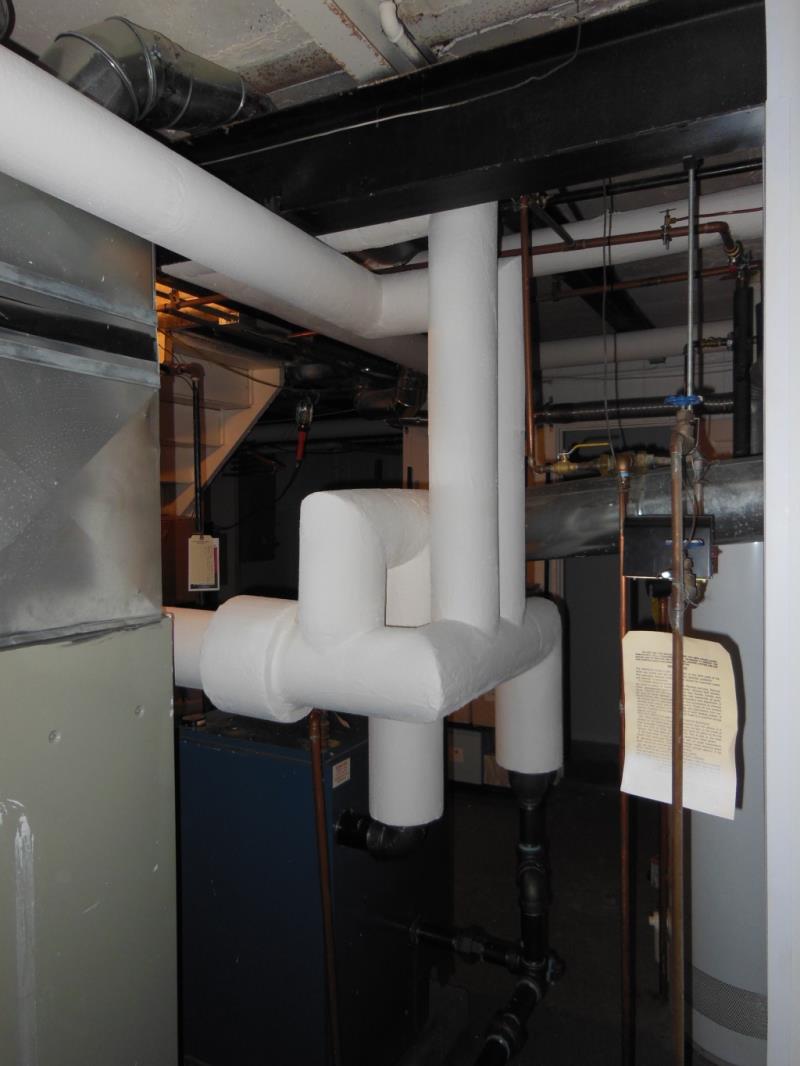

Mark did a magnificent job of insulating.

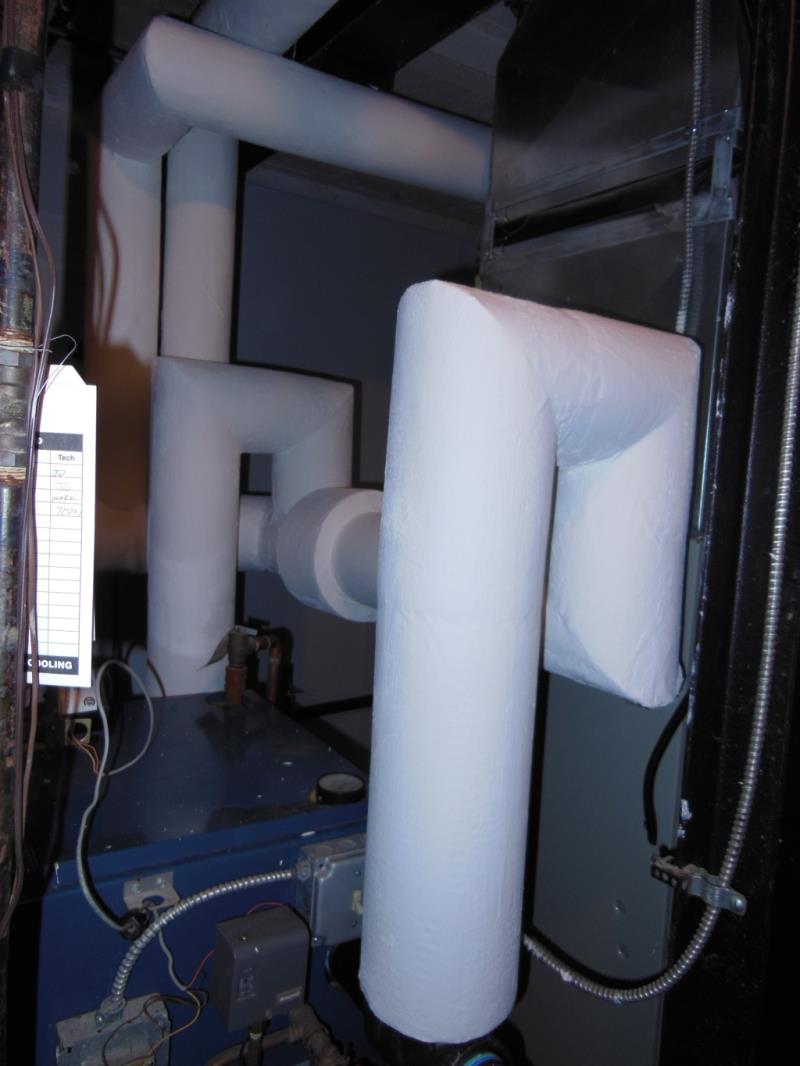

Another view of Marks insulation job.
