Sarah's Burnham Commercial Steam Boiler

We took out a boiler in this residence that had failed, and replaced it with a Burnham series 5 commercial boiler. The boiler is in a very small room to try and take its combustion air from, so we put a mechanical louvered air intake in the window and had glass block placed around it. There is an interlock so it has to be proven open before the boiler will be allowed to fire. A new 4'' pad was also installed for the boiler to sit on.

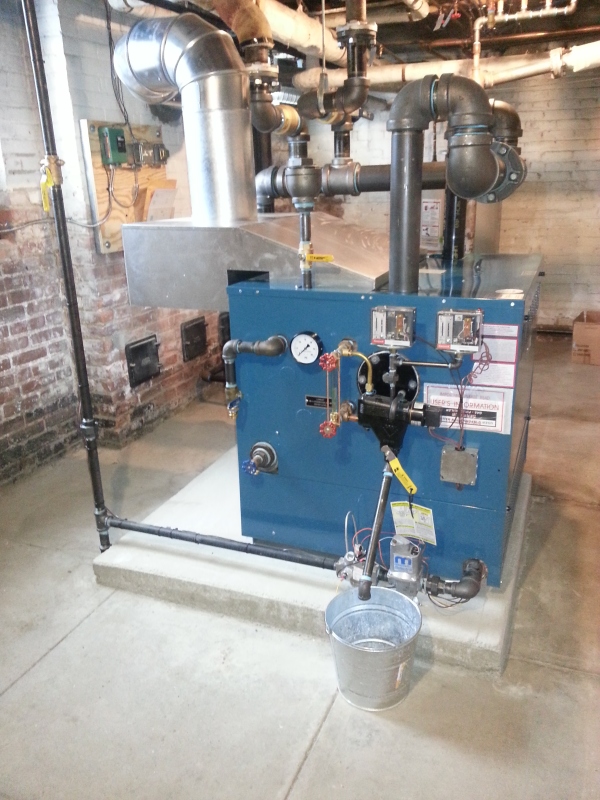

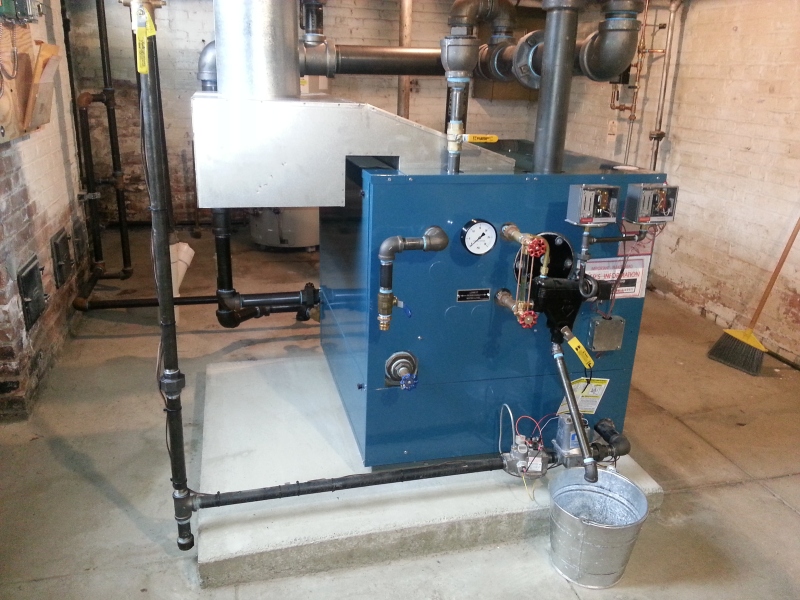

Front view of completed boiler.

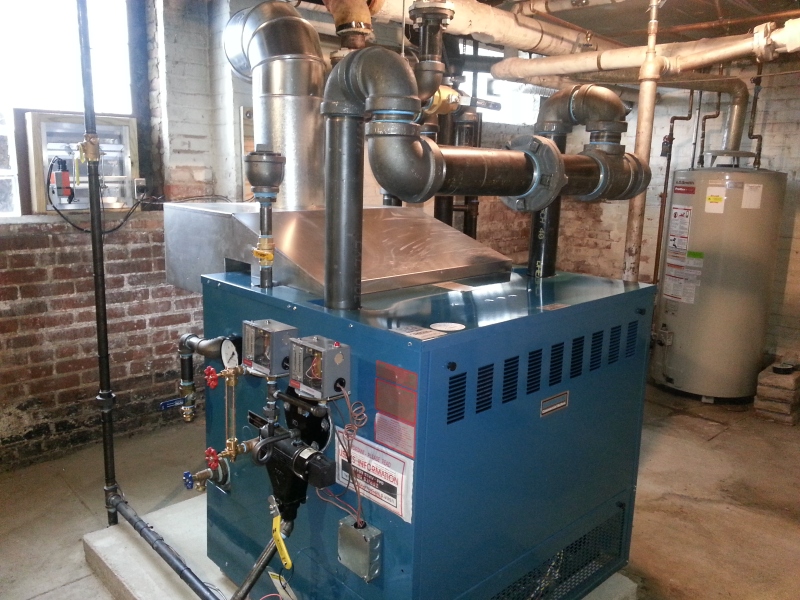

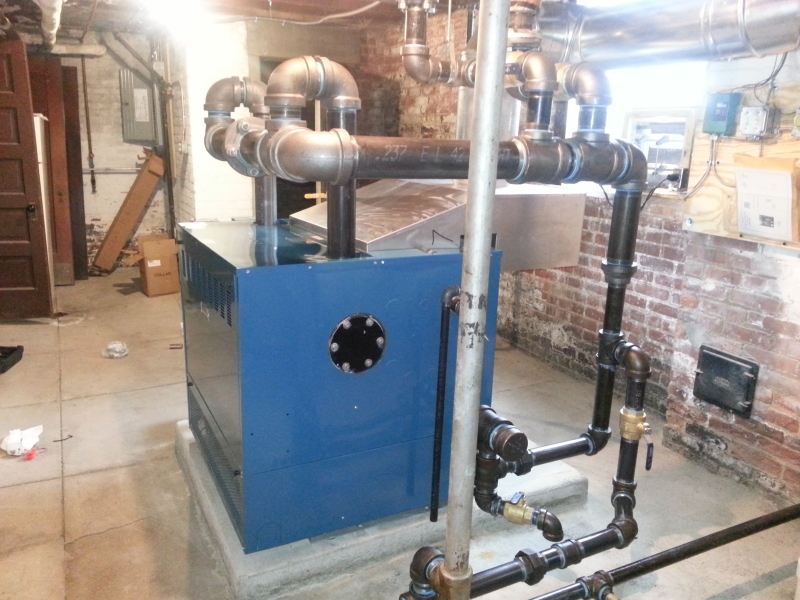

Side view of completed boiler.

Better side view.

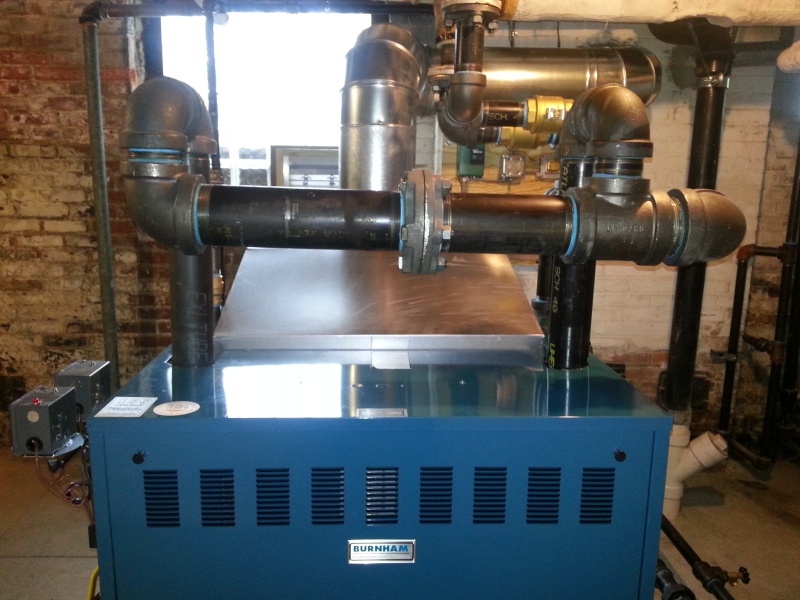

Header view.

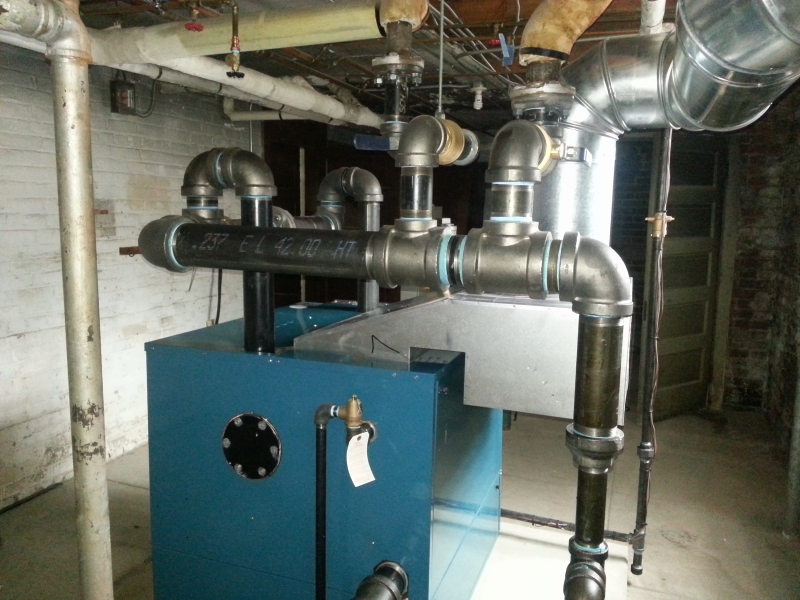

Side view of header.

Another view of the headers takeoff leg.

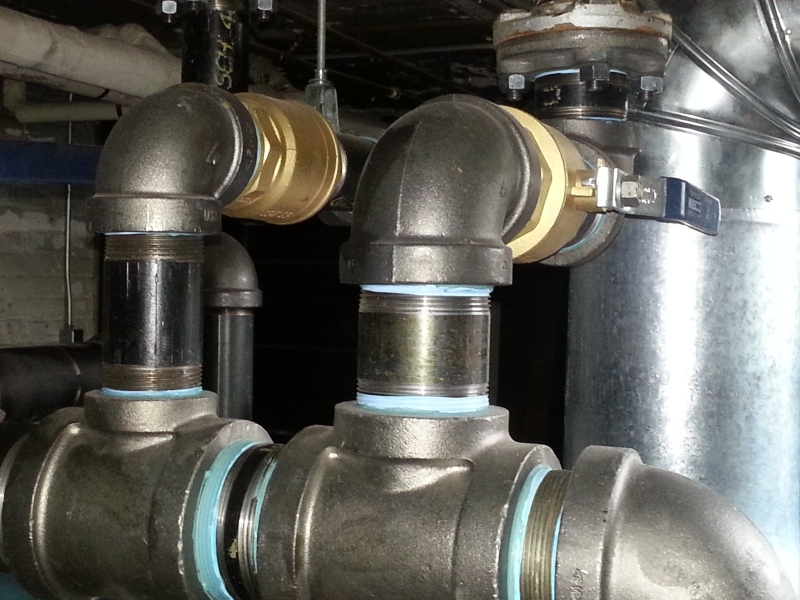

Valves on the takeoffs for blowdown purposes.

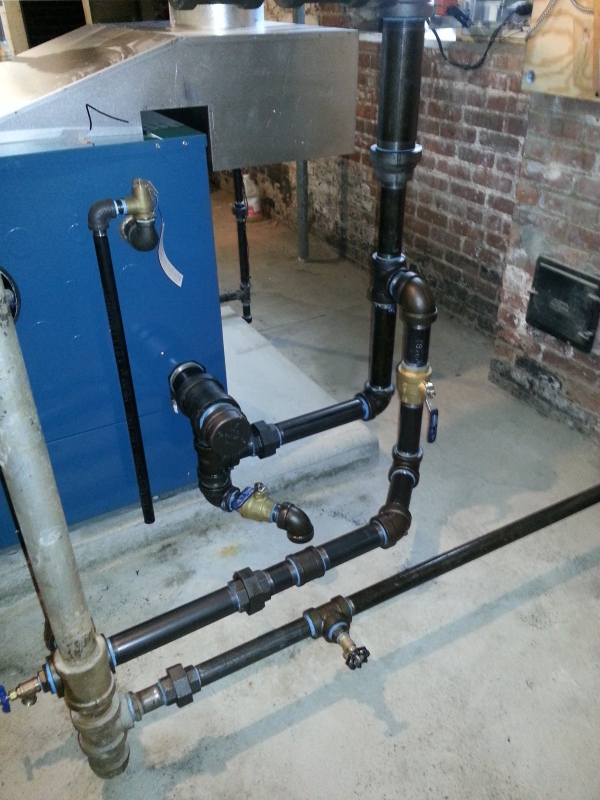

Hartford loop and drain valve.

Full size cleanout for cleaning the boiler.

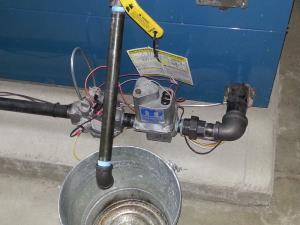

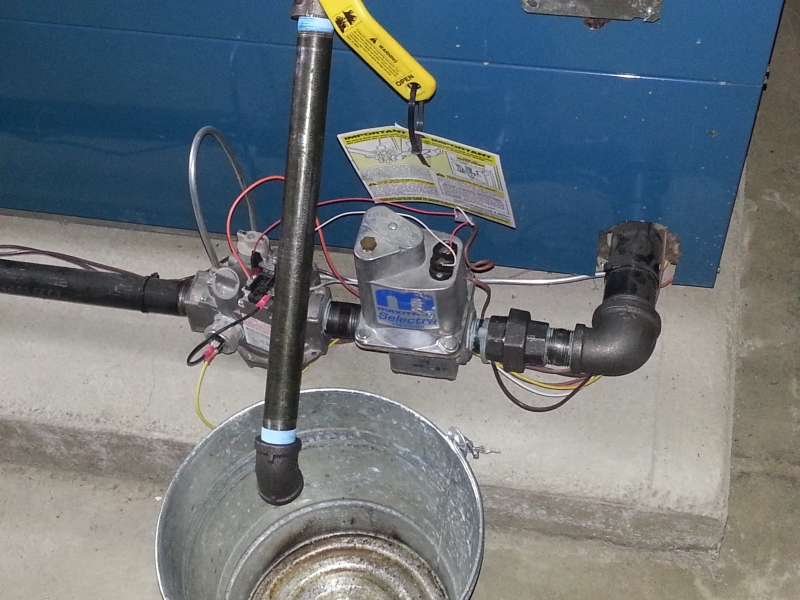

Low fire Maxitrol valve added.

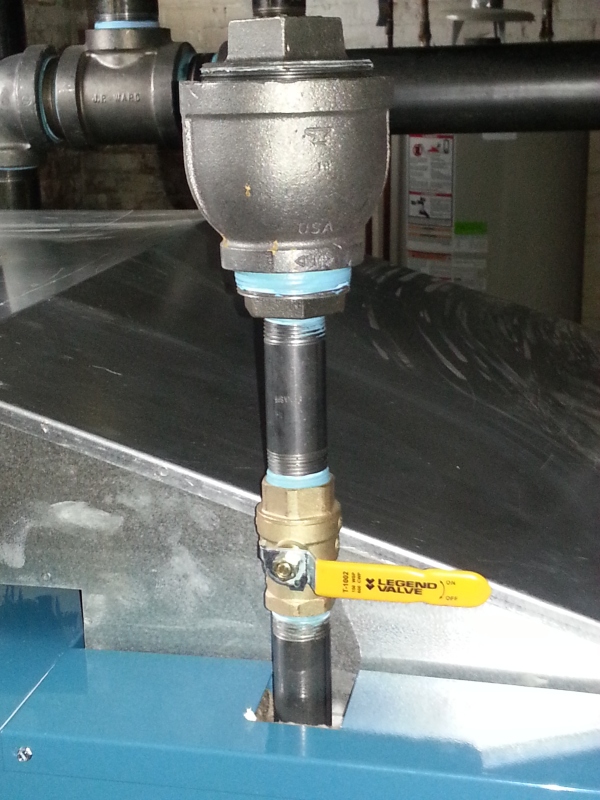

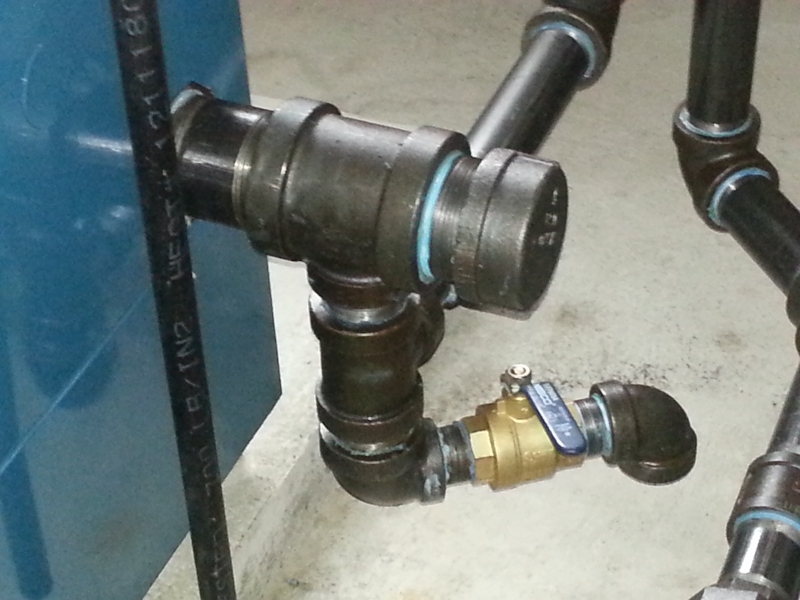

Boiler treatment, chemical fill port.

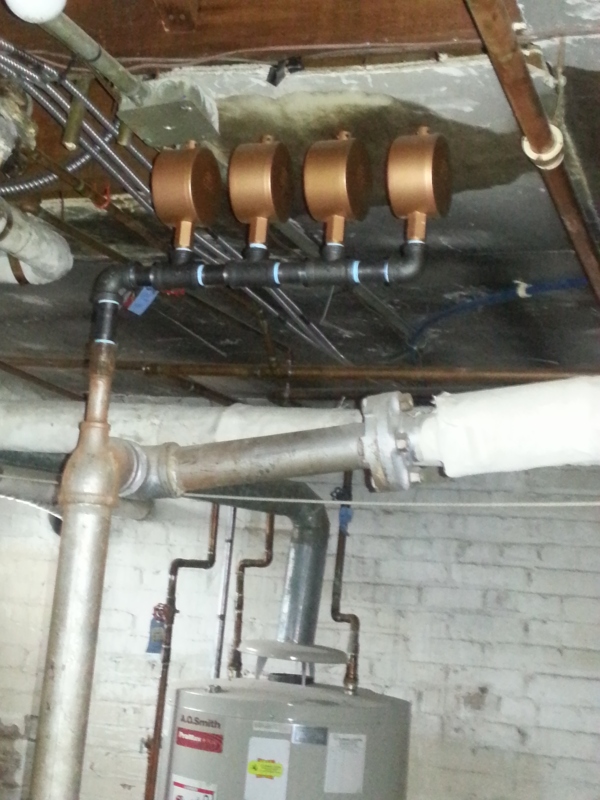

Main venting upgraded.

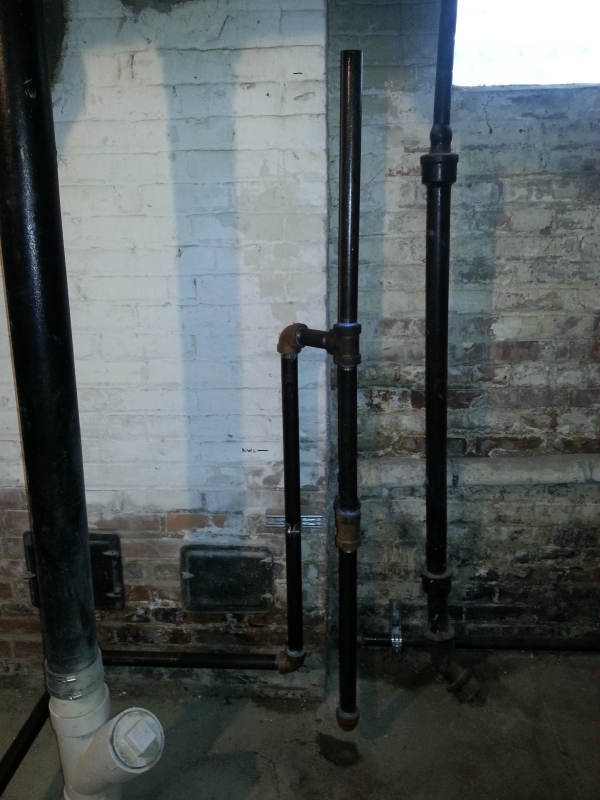

False water line added.

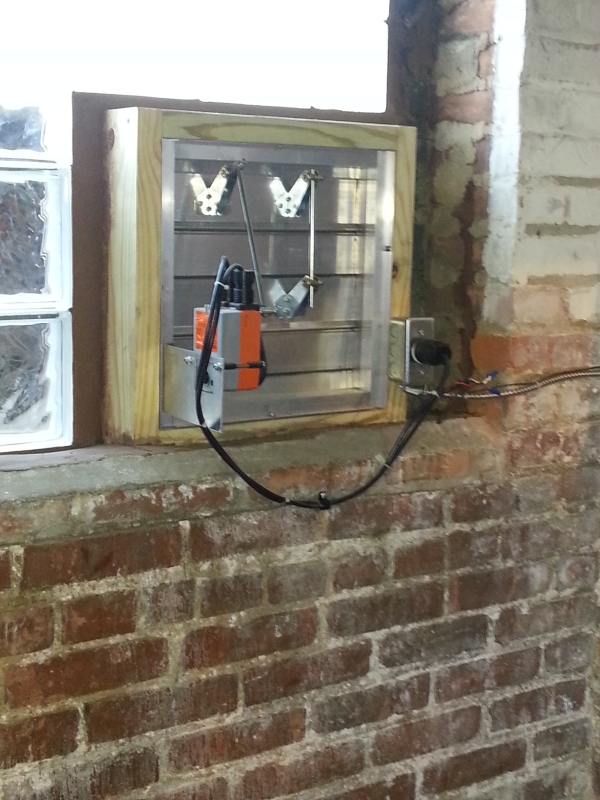

Combustion air intake motorized damper.

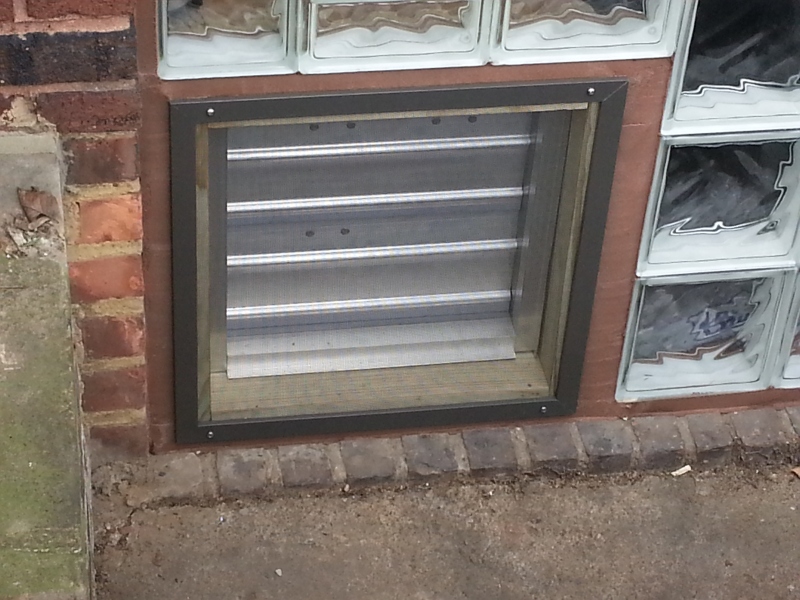

Outside view of combustion air intake.
