Courtland Boiler with Reservior Tank

This steam boiler replacement took place due to the existing steam boiler leaking in between the sections from the deterioration of the gaskets, and a steam leak through the iron into the draft hood. We actually didn't know about the steam leak into the draft hood until we took the sheetmetal off. The leakage in between the sections was enough to cause the replacement itself.

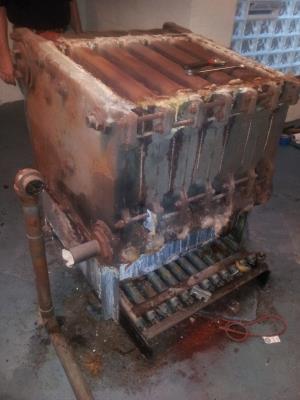

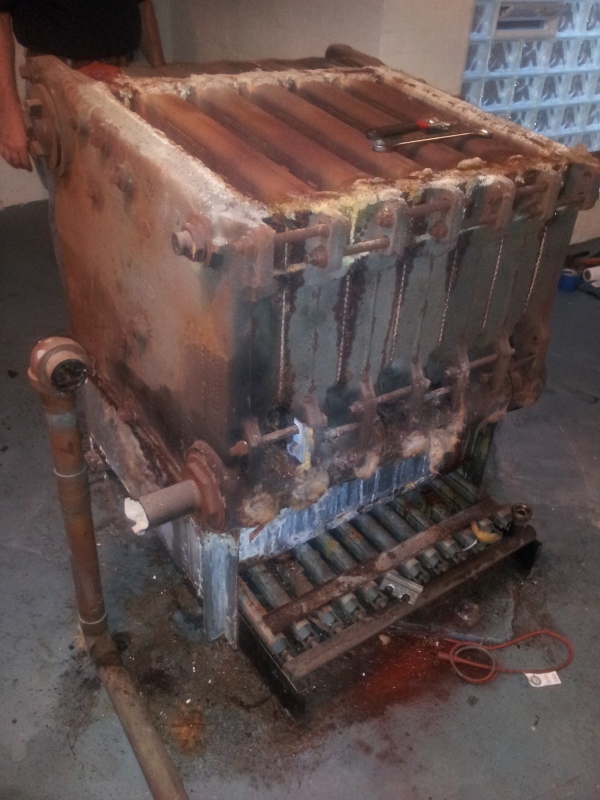

Old leaky boiler.

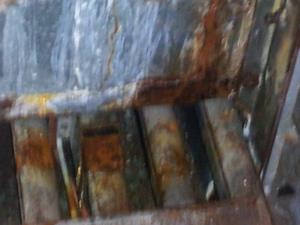

Red spot is a steam leak that shot steam up the draft hood.

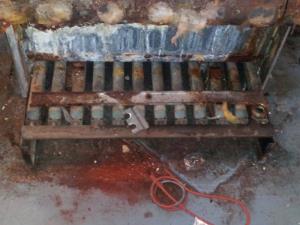

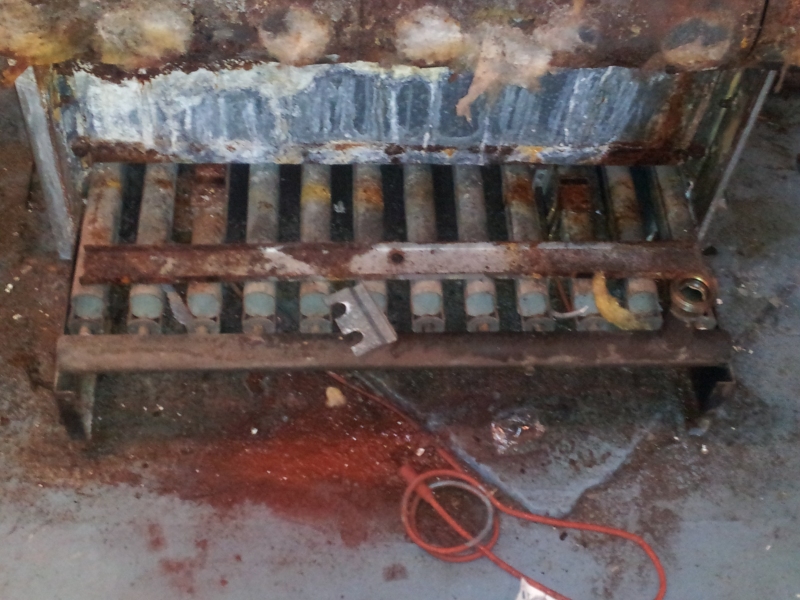

Leakage onto the burners.

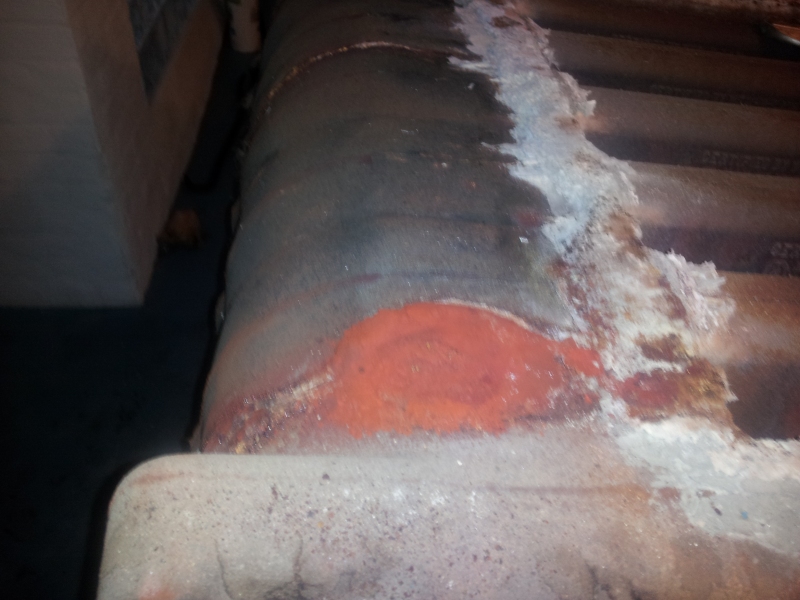

Closer view.

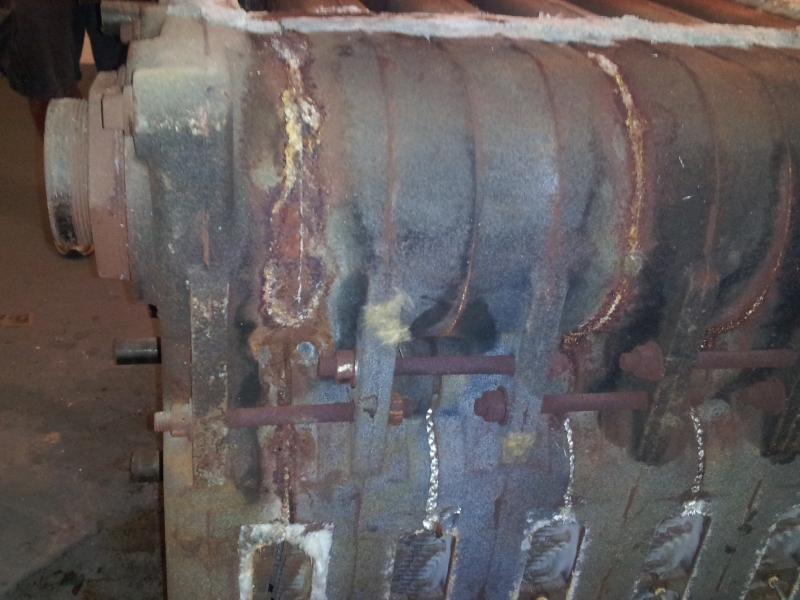

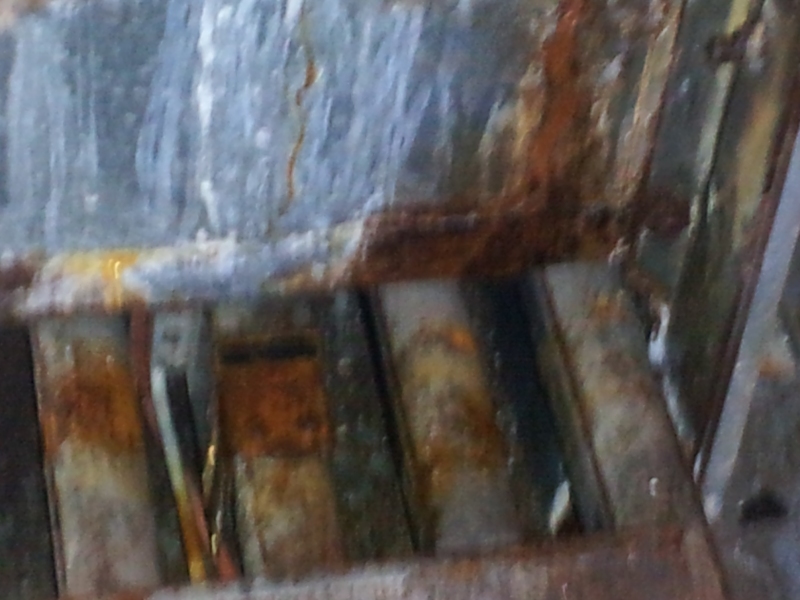

Leaking from rubber gaskets between sections.

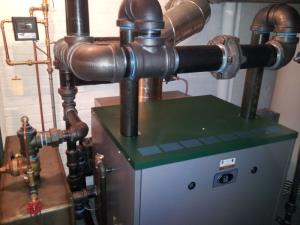

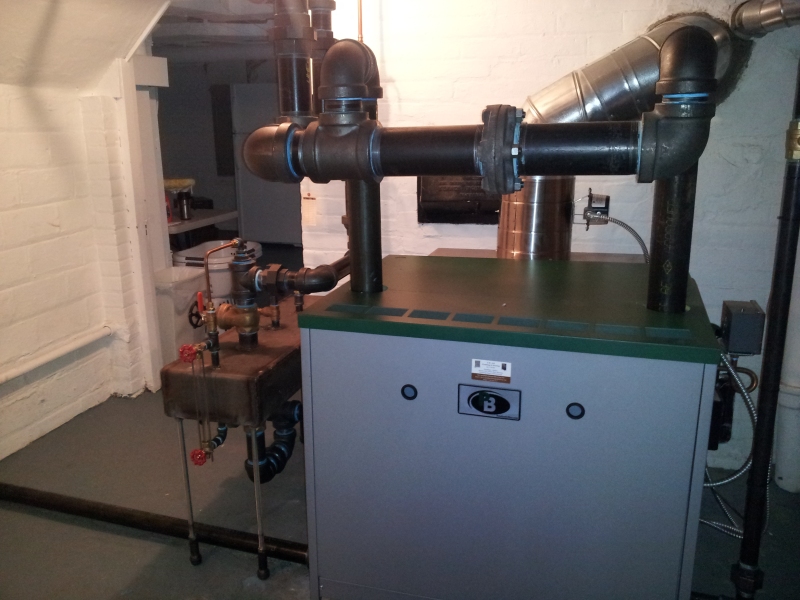

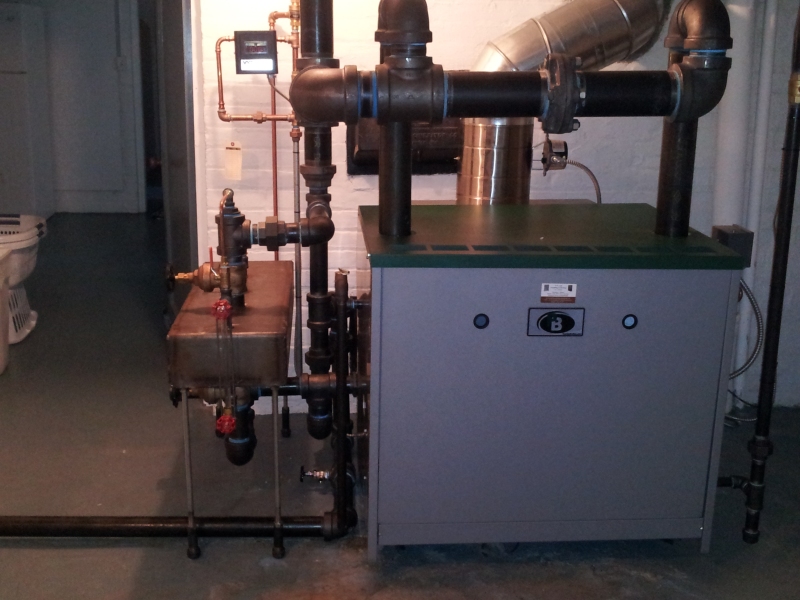

Finished install front view.

Dropped header pipe for drier steam.

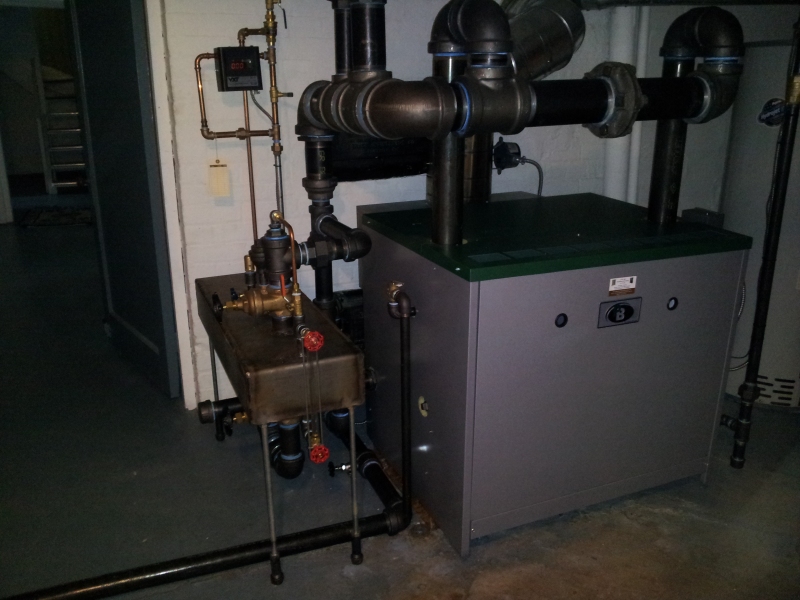

Reservior tank on the left for added water.

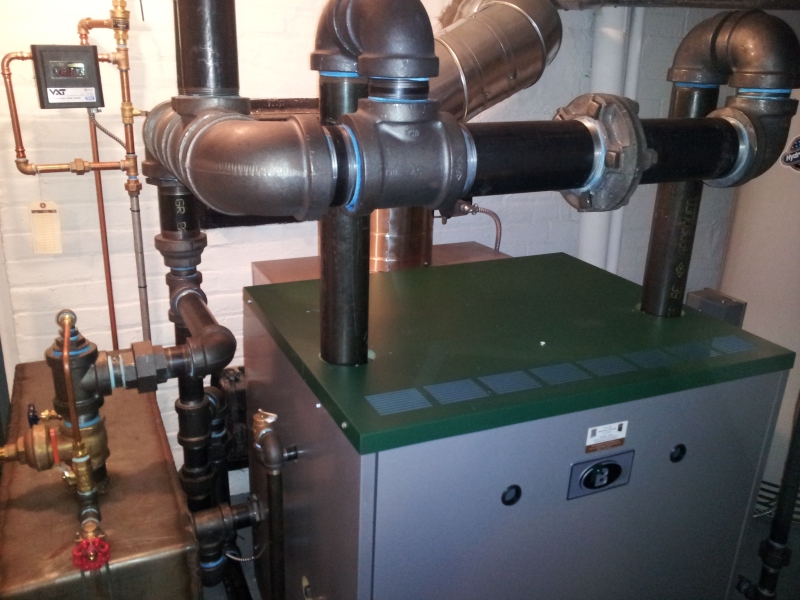

Take off piping from the header to the system.

Close up view of 4'' header.
