Thompson Valves Replacement

We were called to this house to replace the valves on the manifold and we found the regulator valve not functioning and the thermal expansion tank diaphram ruptured. We froze the incoming water line with an electric pipe freezer. This enabled us to change the incoming valve. Then we changed the manifold valves, regulator, and added a bigger thermal expansion tank (since there are two water heaters) and also added a means to facilitate annual checking of the air charge in the tank. That was something the prior tank lacked. All the ball valves with the orange handles are USA made Wolverine Brass valves.

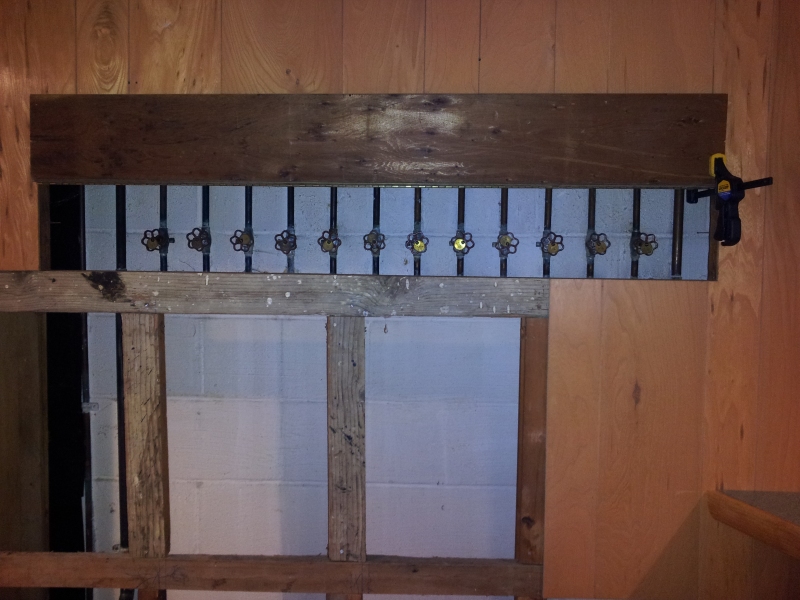

BEFORE- old manifold valve station with leaky valves.

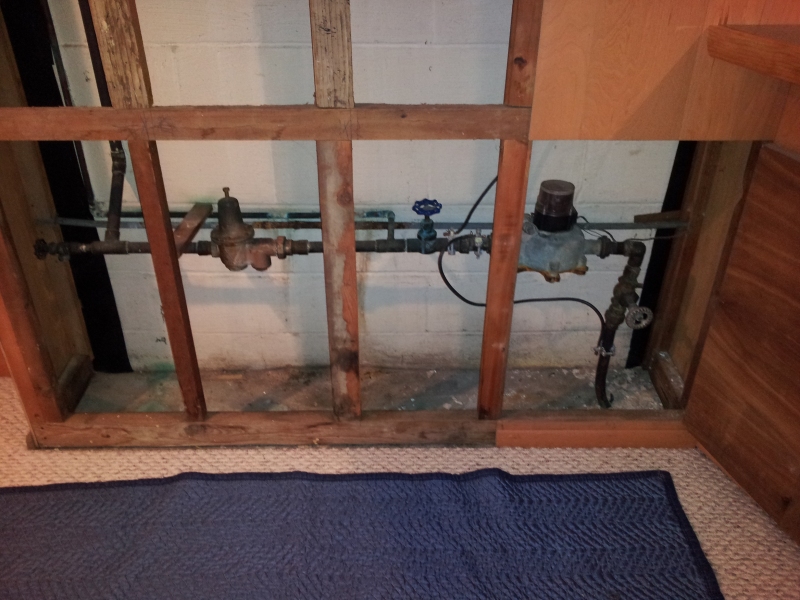

BEFORE- old water entry station. Valve downstream of meter didn't work any longer, nor did the regulator.

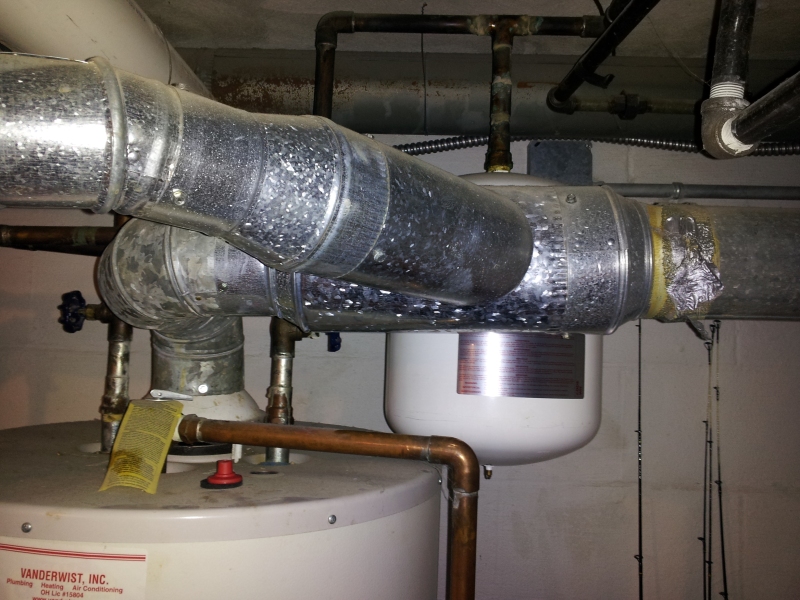

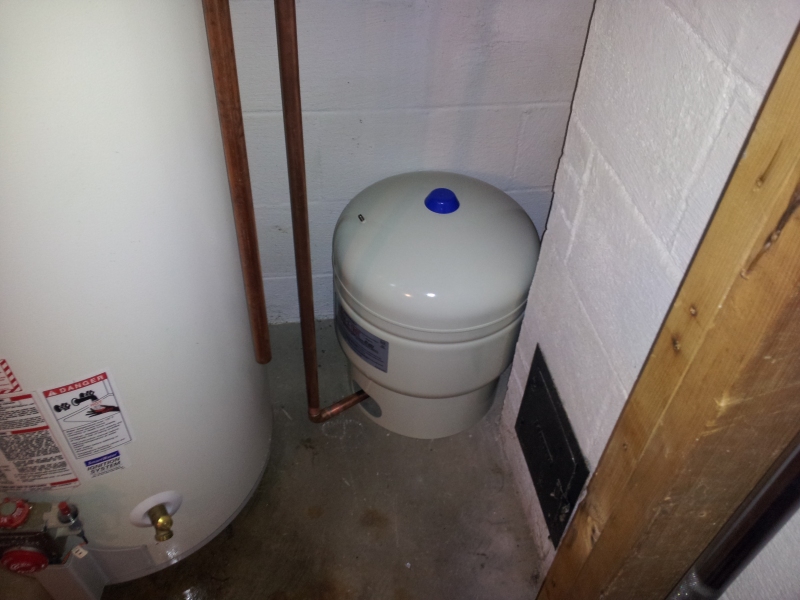

BEFORE- thermal expansion tank diaphram had ruptured.

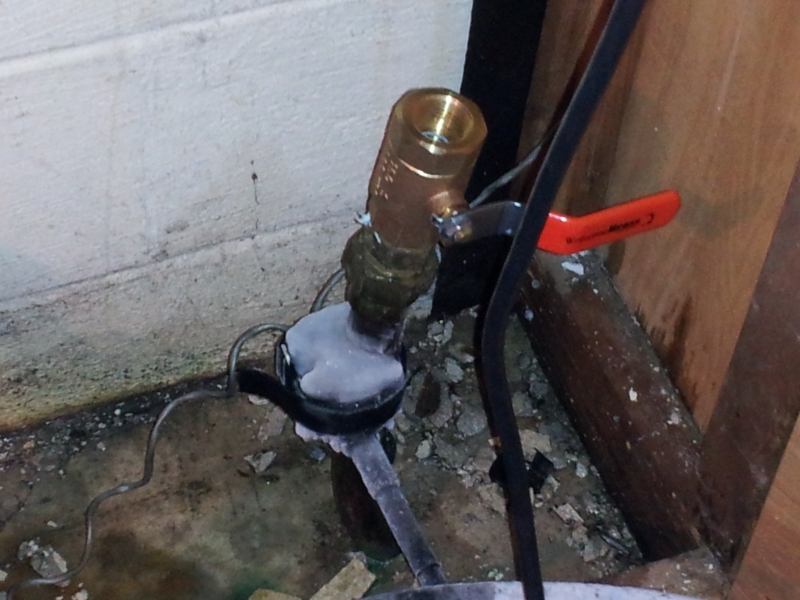

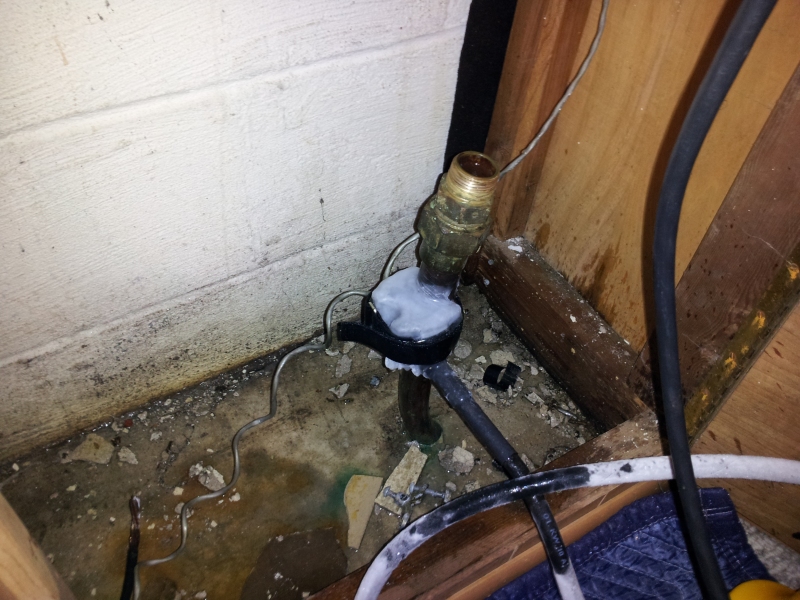

We froze the incoming line and removed the house shut off.

The new house shut off installed.

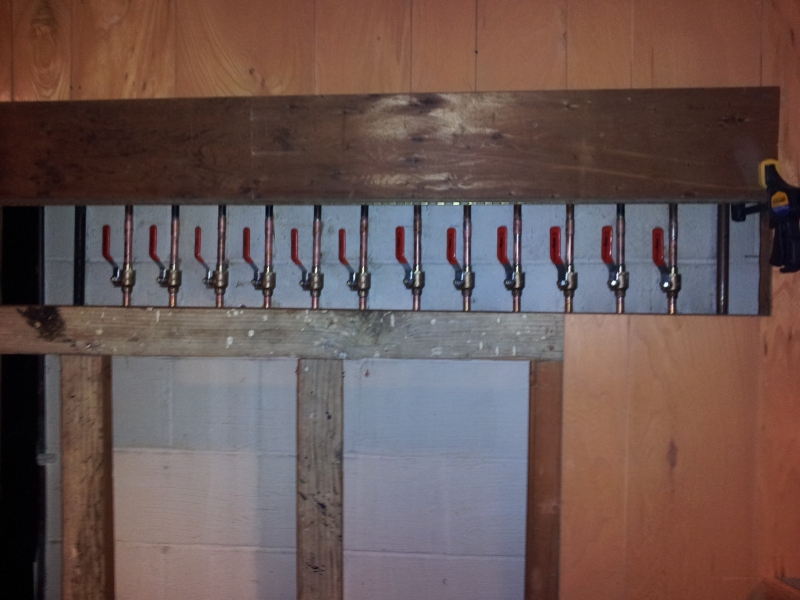

The new manifold station.

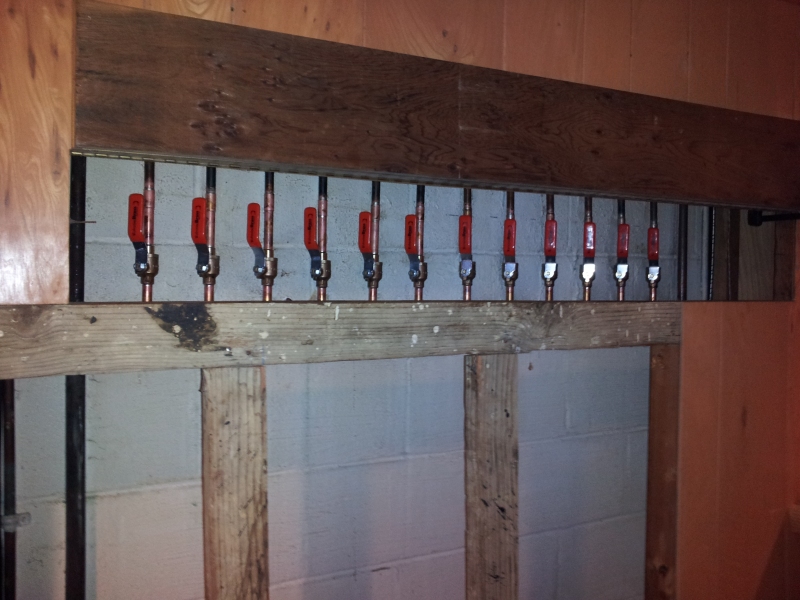

All USA made Wolverine Brass valves.

Larger expansion tank installed on the floor.

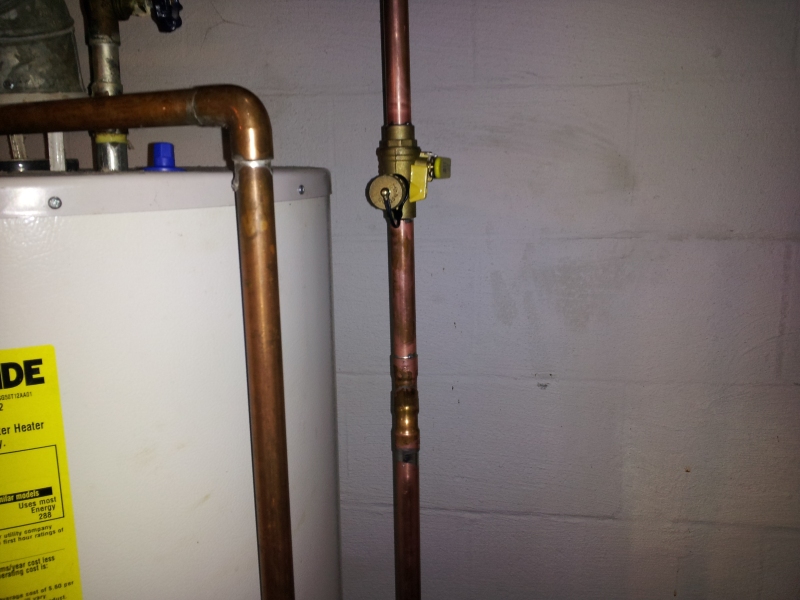

Expansion tank valves added to facilitate testing.

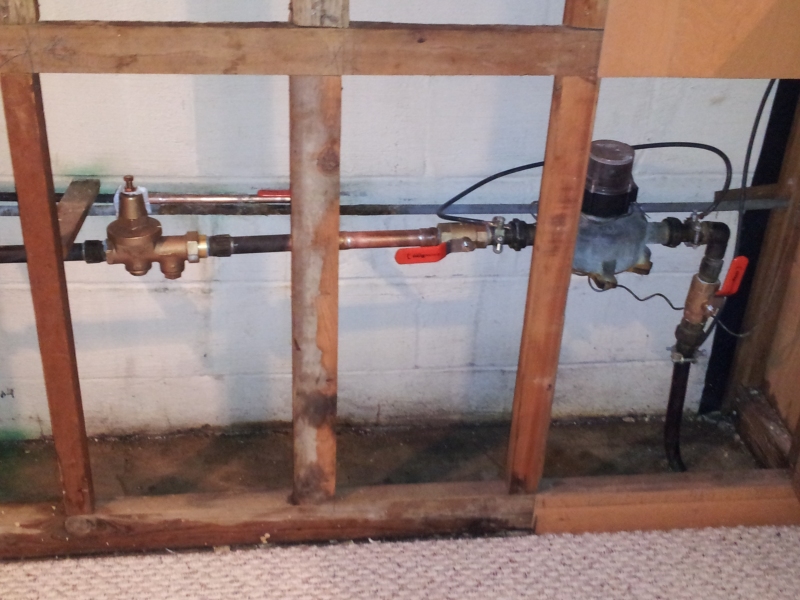

The new water entry station. New valves before and after the meter. New regulator.

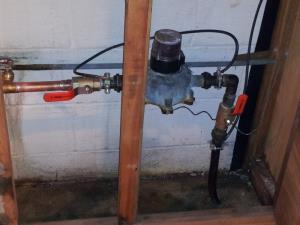

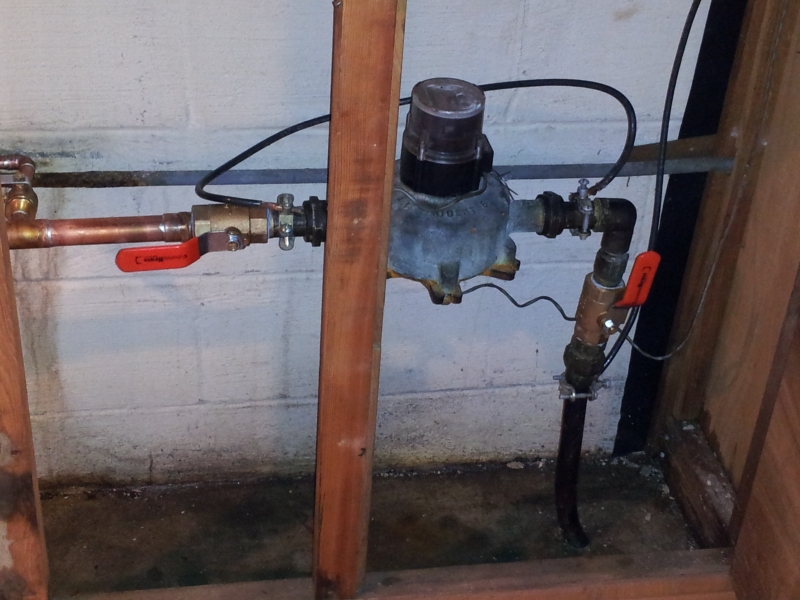

Closer up view of the meter valves.
