Zanesville Refit Installation

I call this job a refit because the existing system in the boiler room was for lack of better words, an 'abortion'. There was parts of the old coal system still in service. The gas boiler was on its last leg. Someone added a feed tank that was bigger than the boiler. There were pipe patches all over the piping. Jobs like that are best suited by a complete do over. That was what we did in this house. The boiler was replaced with a SlantFin Galaxy. The pumped return was turned back into a gravity return. We added serious main venting to the system. The owner who is 84 and barely had any heat last winter has plenty of heat now. She also said that the system is significantly quieter since we did our work.

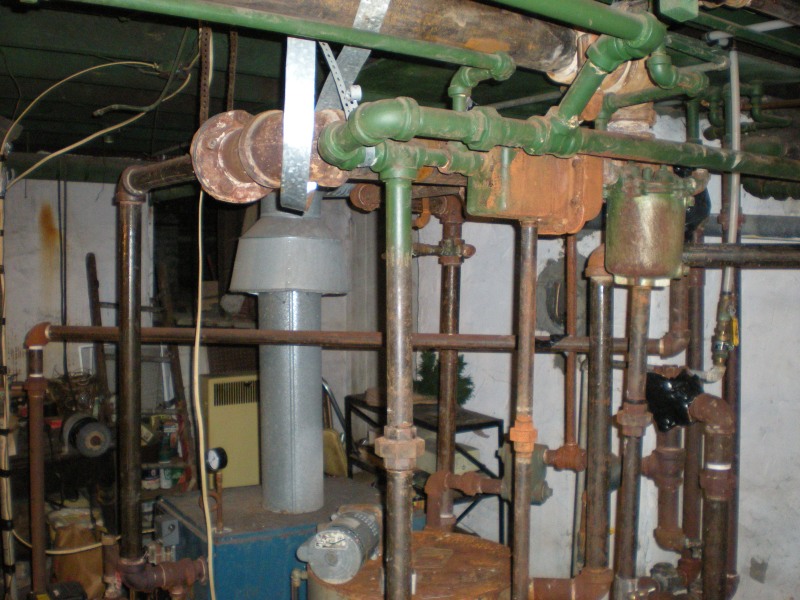

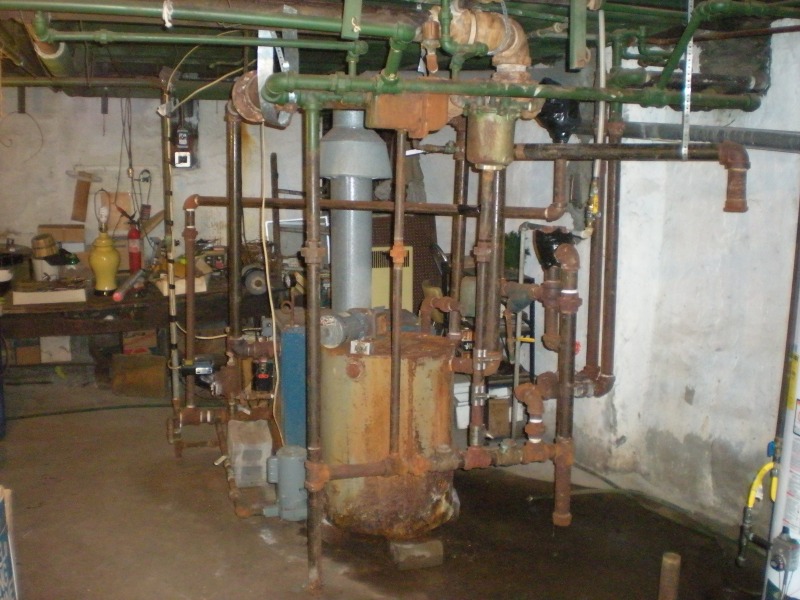

Land of nightmares.

Coal boilers air eliminator and boiler return trap.

Three patches on one return pipe.

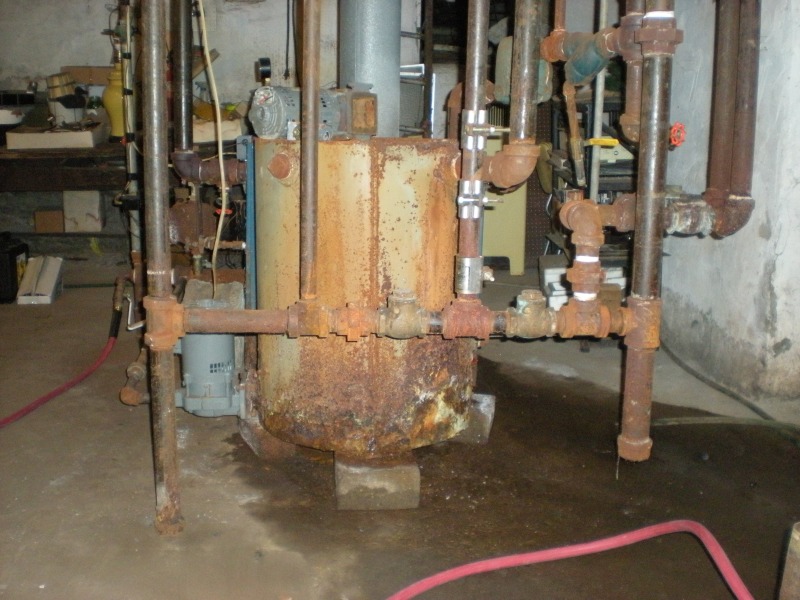

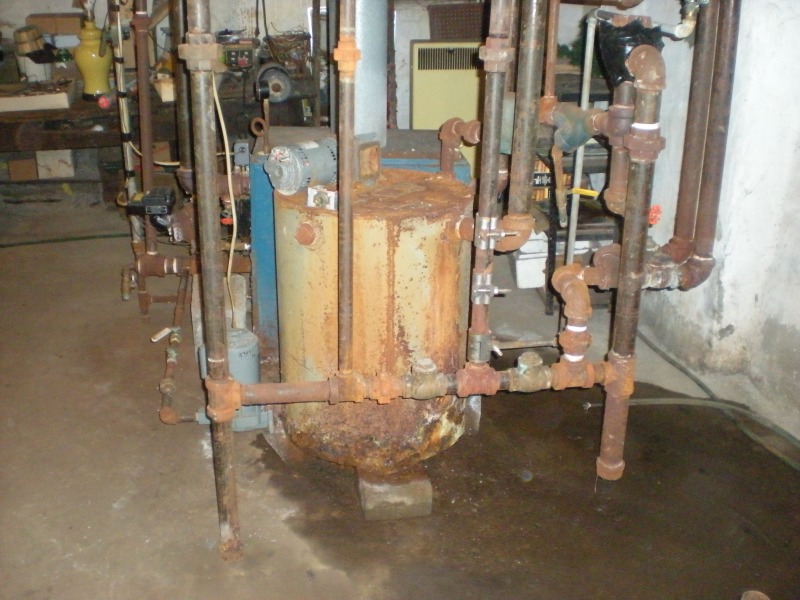

Rusted out feed tank. Look at the size of it compared to the old boiler behind it.

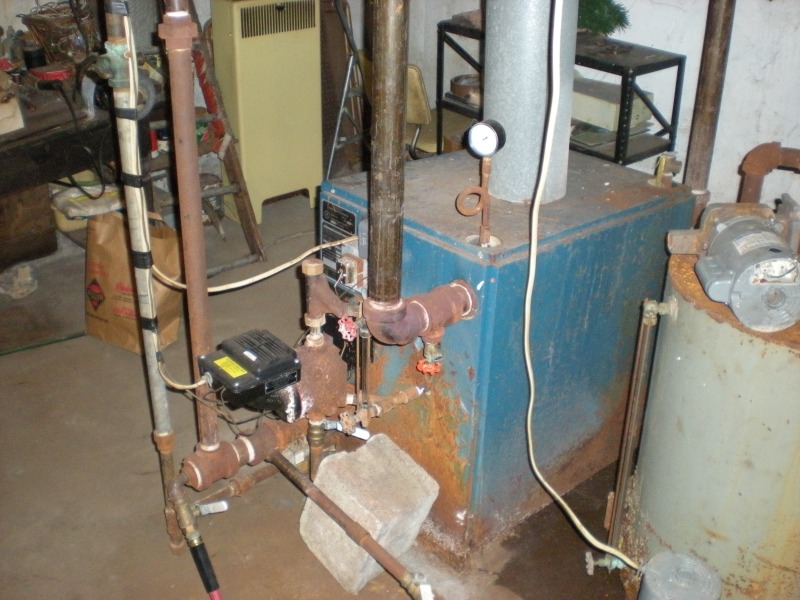

Boiler rusting out.

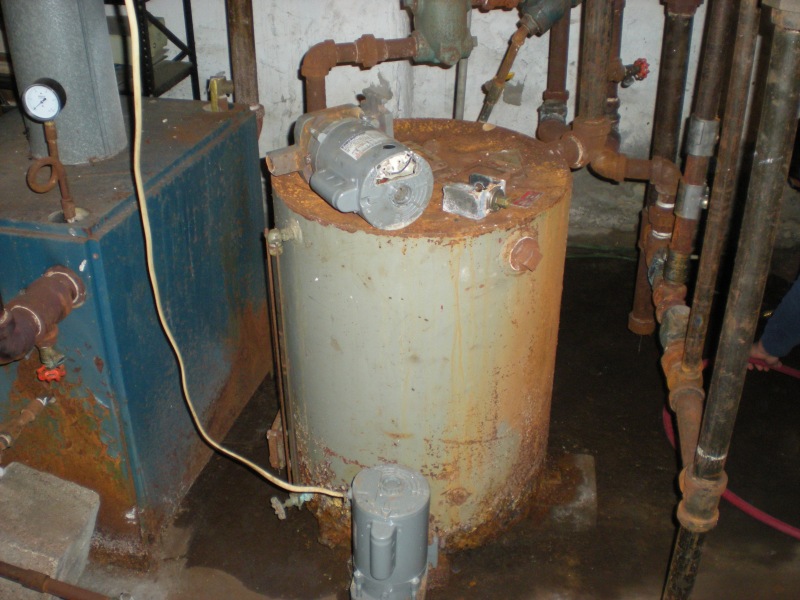

Notice the F&T trap over the feed tank. Wrong application.

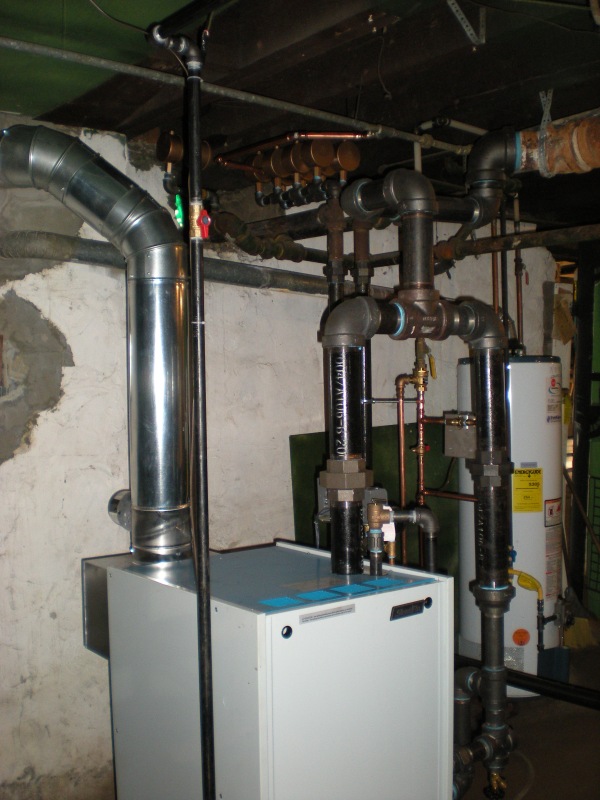

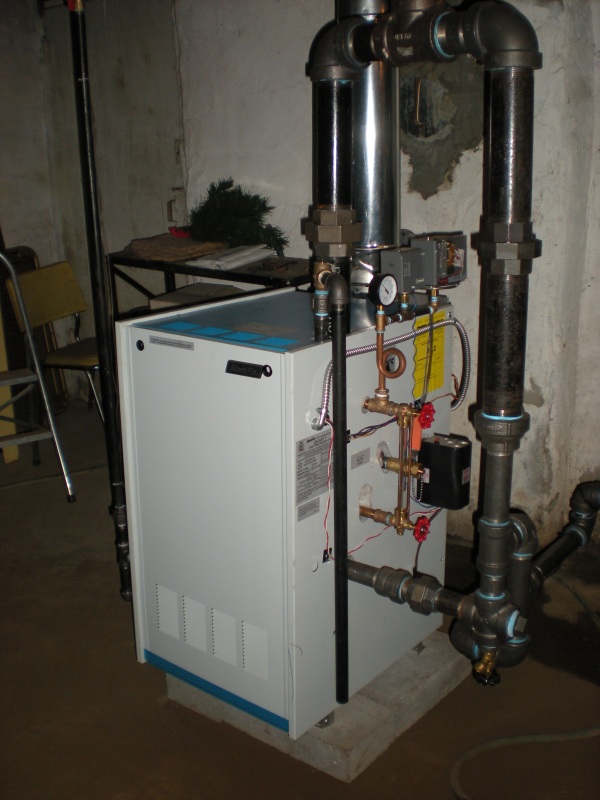

New SlantFin Galaxy.

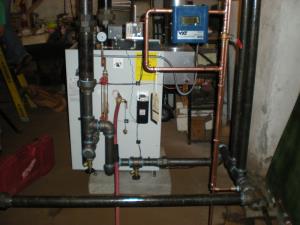

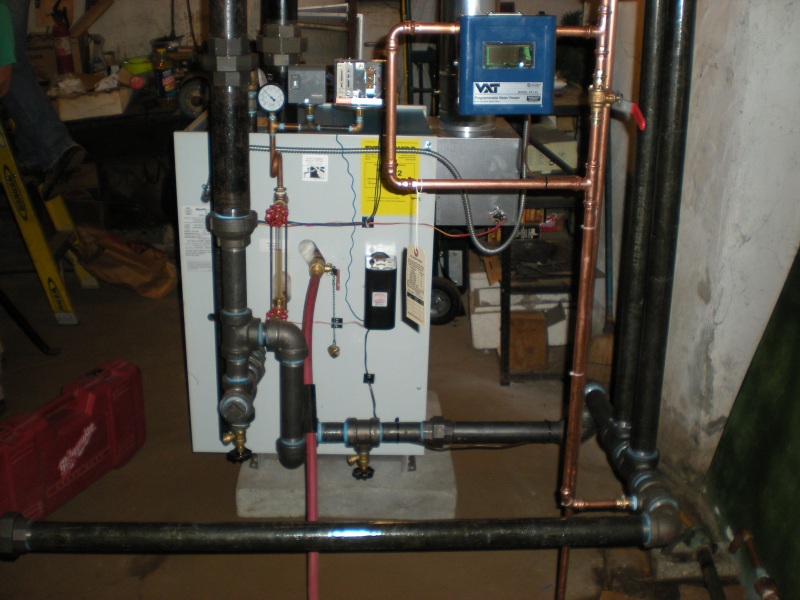

New SlantFin controls end of boiler.

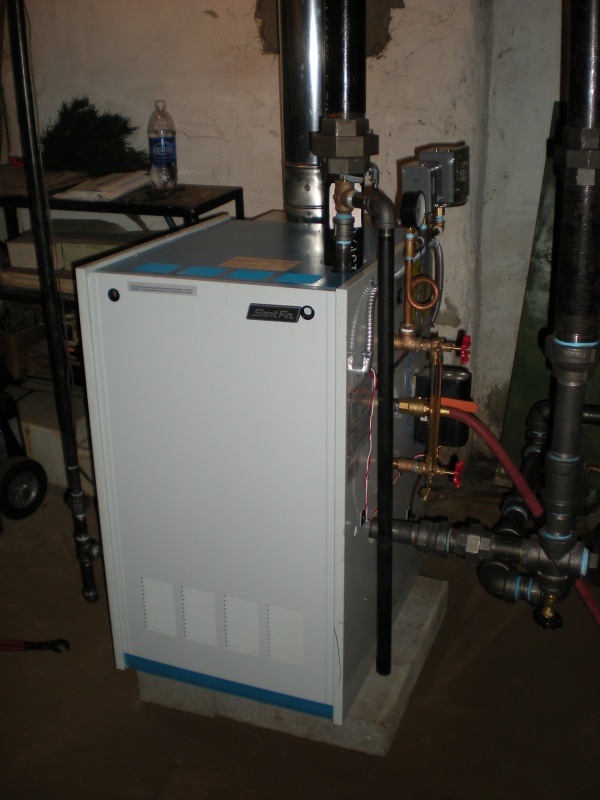

New SlantFin.

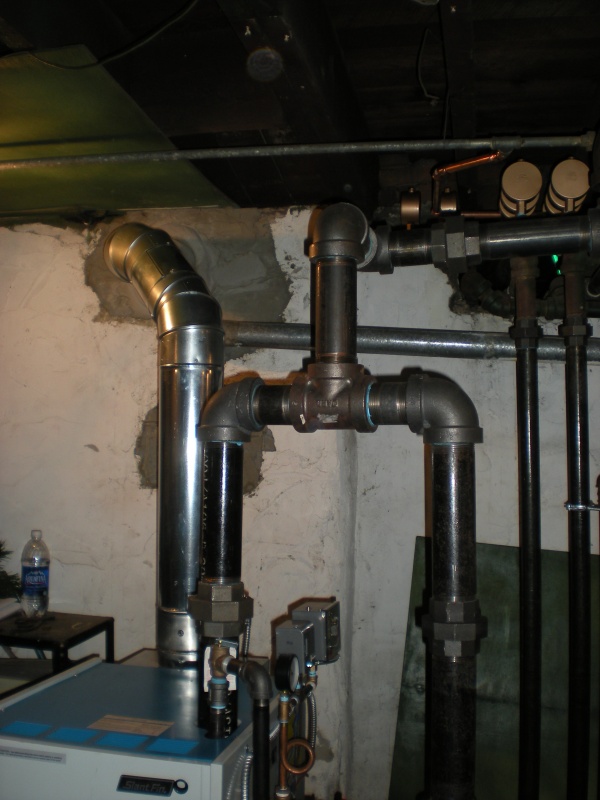

2.5'' header.

Full size equalizer.

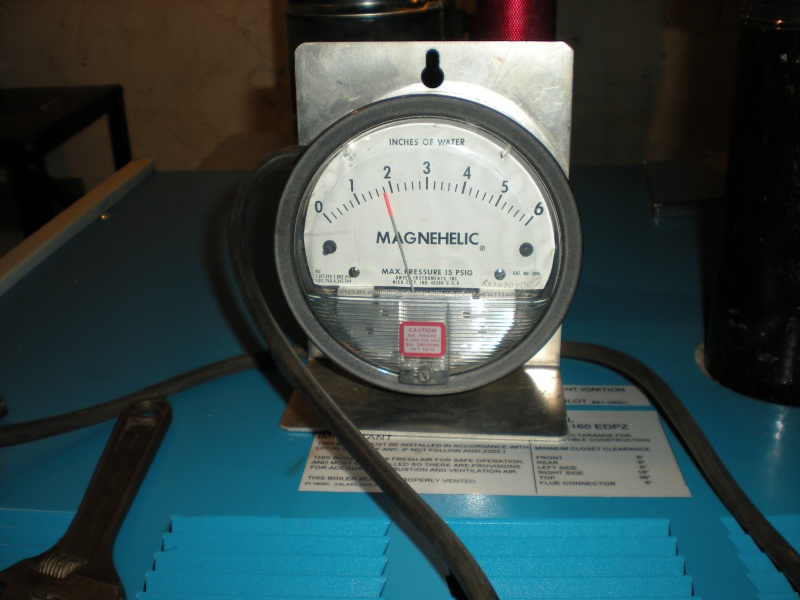

We added low fire to this boiler. 1.8'' in low fire.

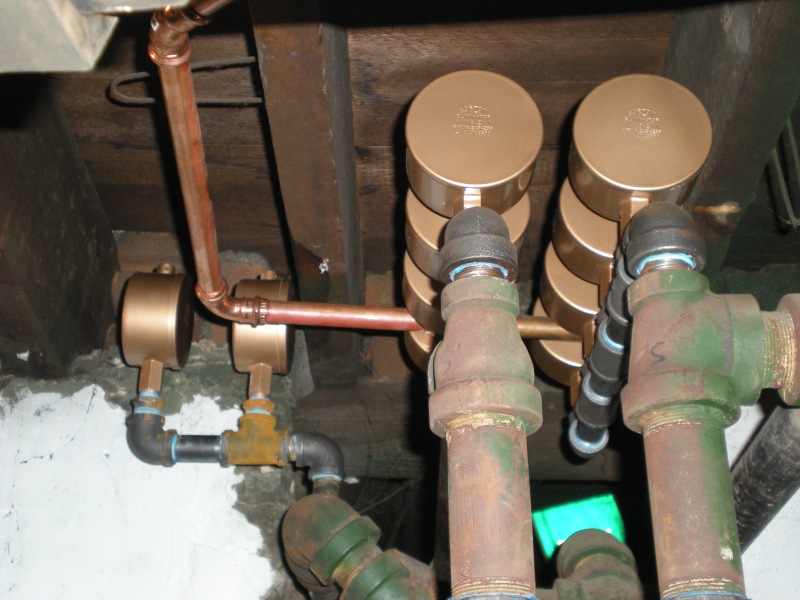

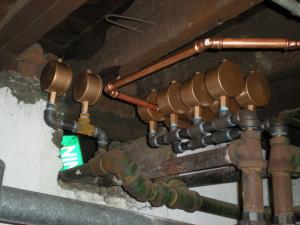

Main vents installed.

Front view of main vents.
