Steel Convector Installation

These are steel convector units that are very close in design to the original copper Modine convectors that had failed. These type of convectors are either recessed in wall cavities or reside inside standing sheetmetal cabinets such as these Modine cabinets. The cool air enters the bottom, gets heated by the convector and rises out the cabinets top grill opening. They may be ugly, but they do heat very well.

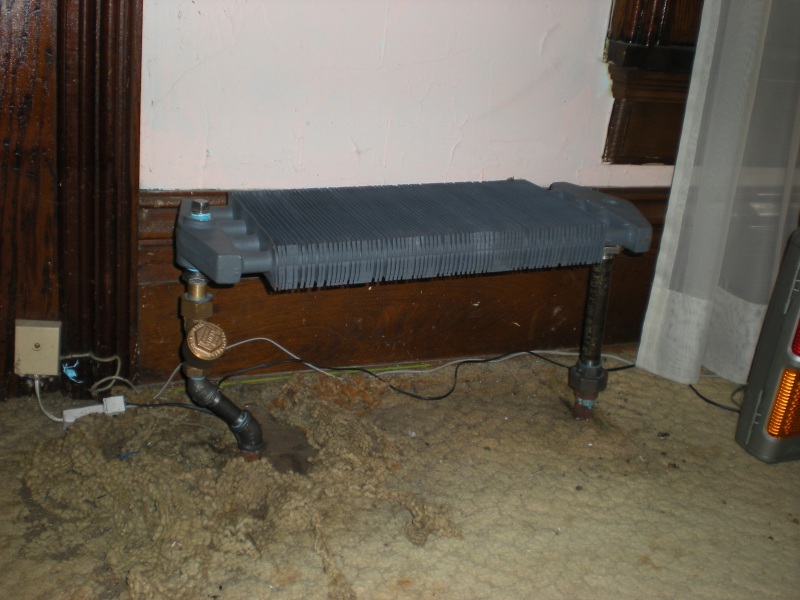

Office room convector.

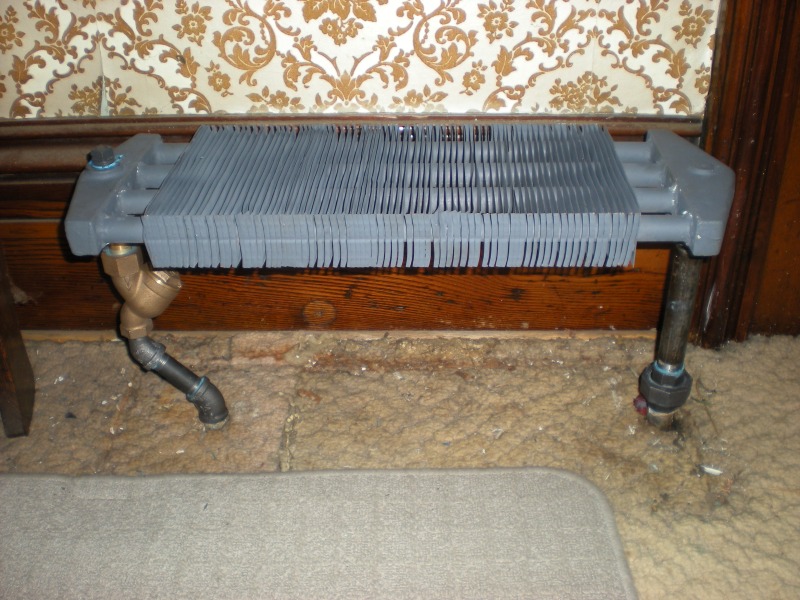

Living room steel convector.

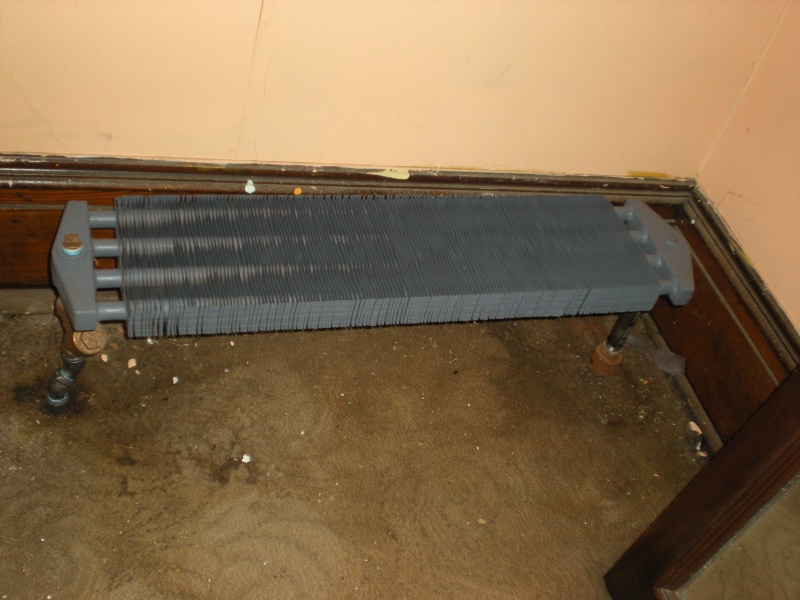

Bedroom convector.

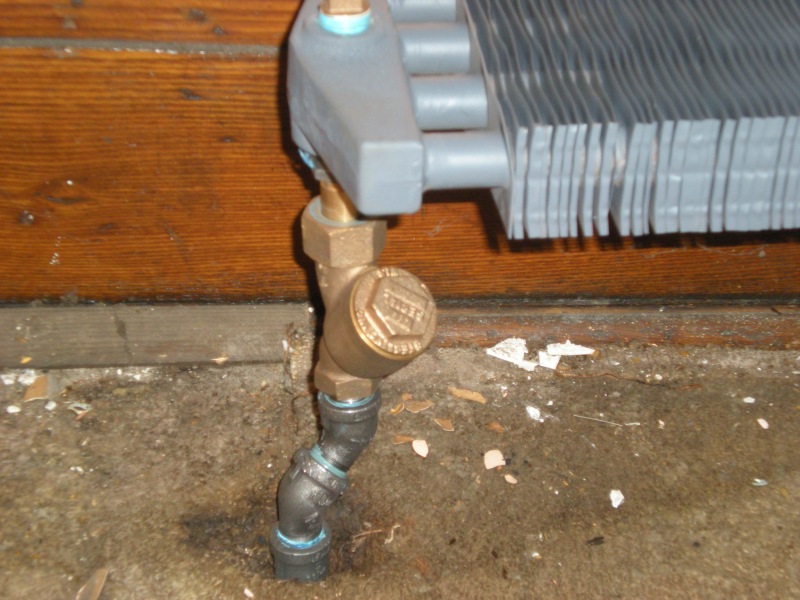

Vertical steam trap.

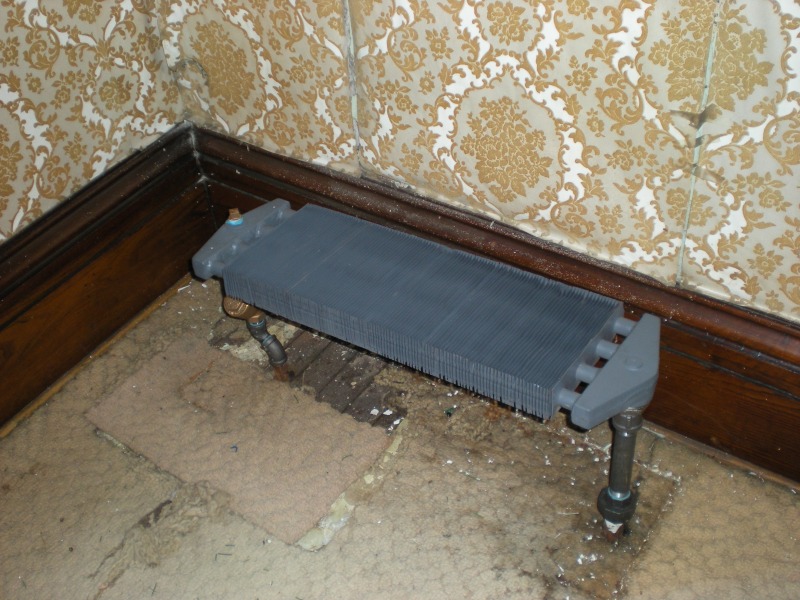

Dining room convector.

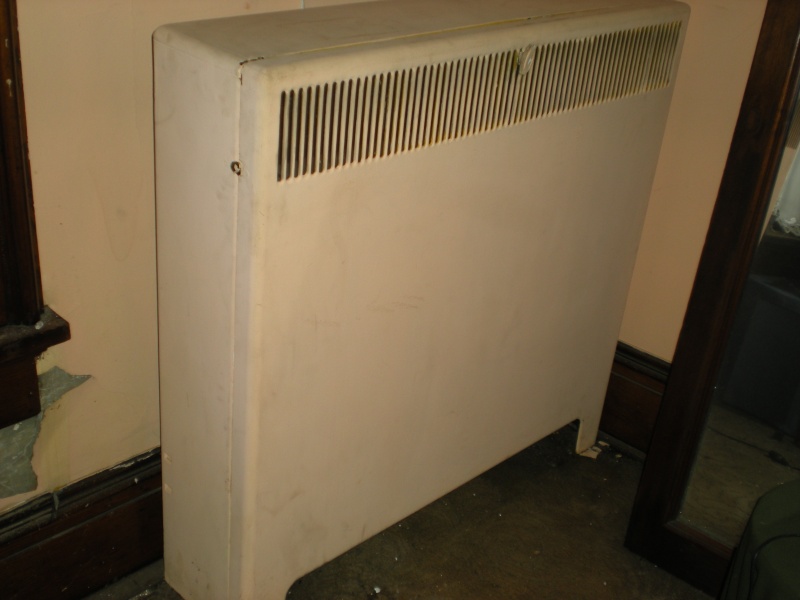

Bedroom convector cabinet installed over convector.

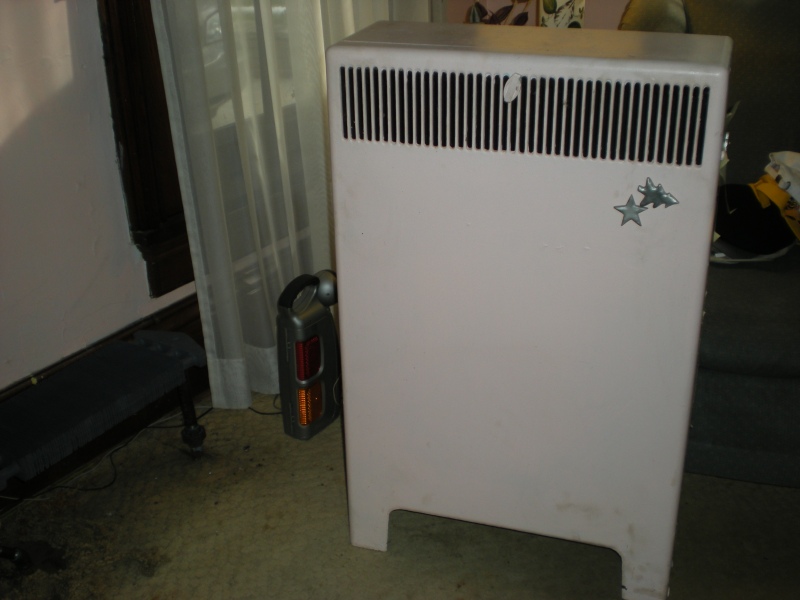

View of a Modine convector exposed cabinet. Note the upper grill has a manual damper adjustment. Thats how the heat output is adjusted.

Steam moves thru tubes from end header to end header.

Then the fins pick up the heat by conduction.

Once fully hot the air passes thru the fins picking up heat by convection.

Good view of properly working steam trap.
