Gerry's Steam Mini Tube (tubing) Pics

The steam is delivered via 3/8th inch tubing which is the same size thats used to feed water to your dishwasher. The return piping is 1/4'' tube which is the same size as the water feed to your icemaker. Boggles the mind huh!

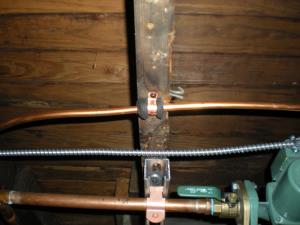

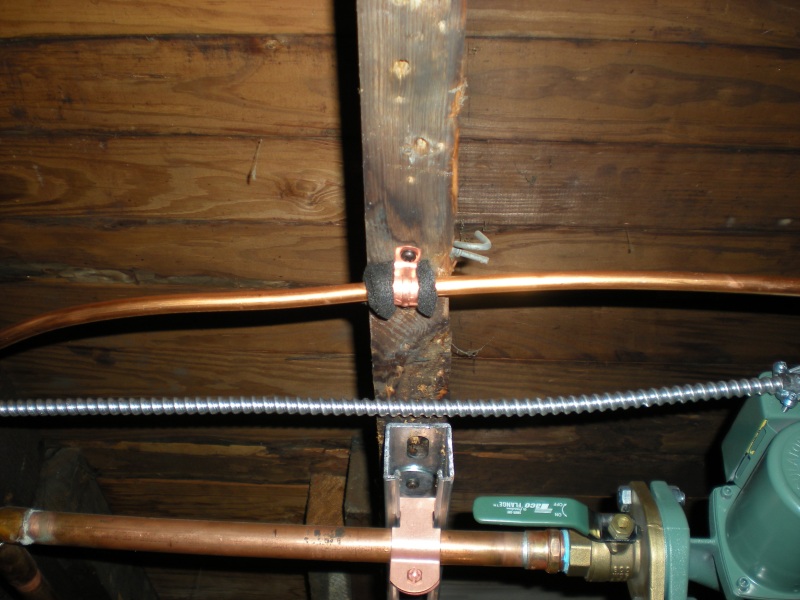

Top copper tube is steam supply to living room.

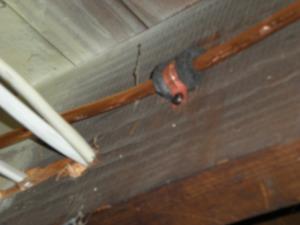

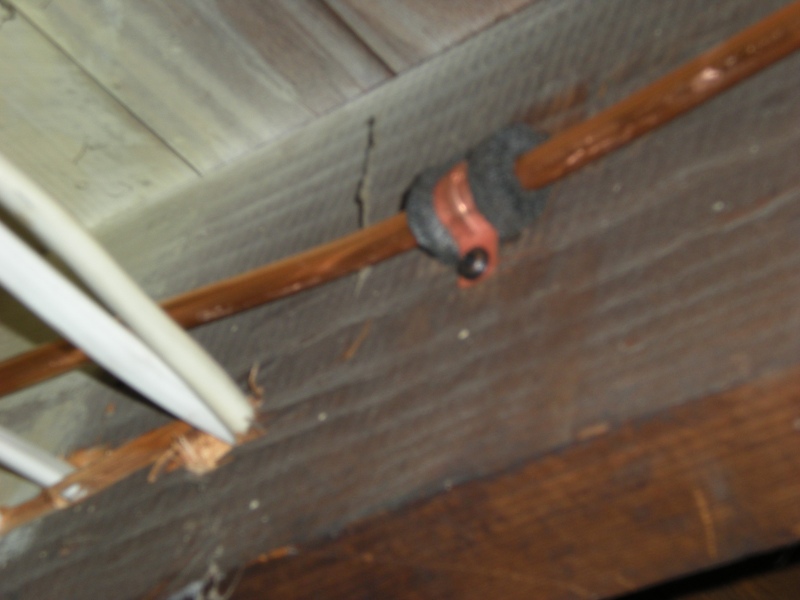

Steam supply tube strapped down with 2500 degree cloth.

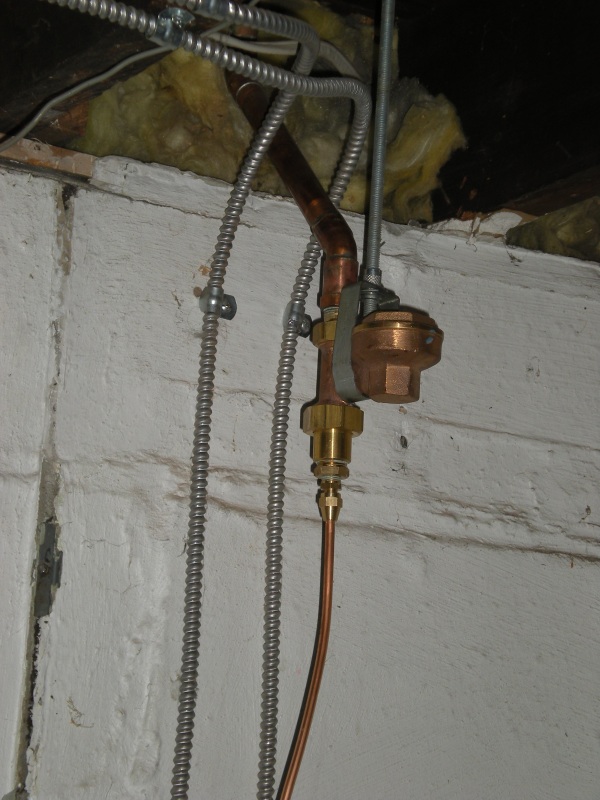

1/4'' inch return tube from the living room's steam trap.

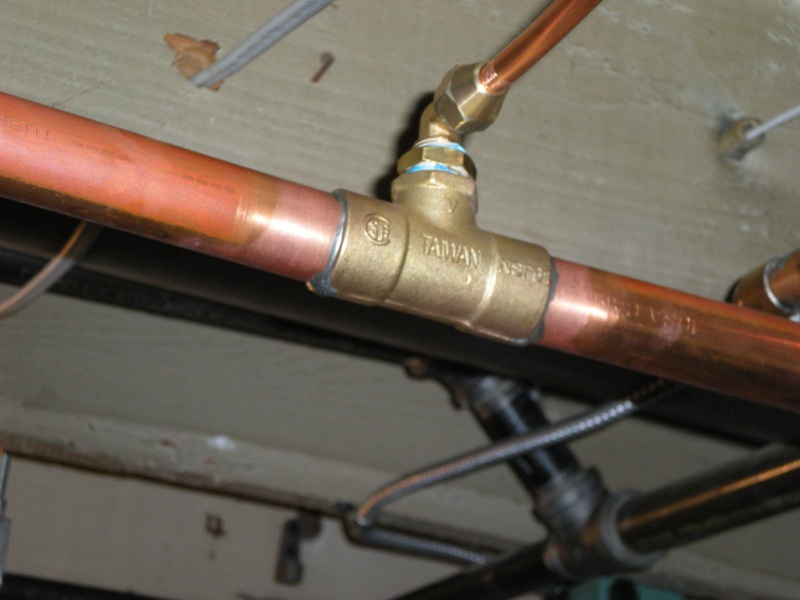

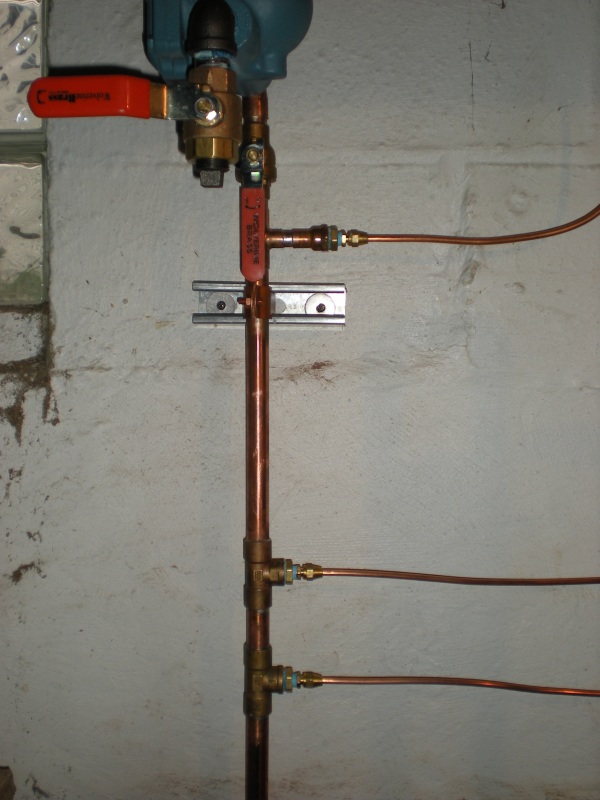

Three 1/4'' return tubes joining the main return.

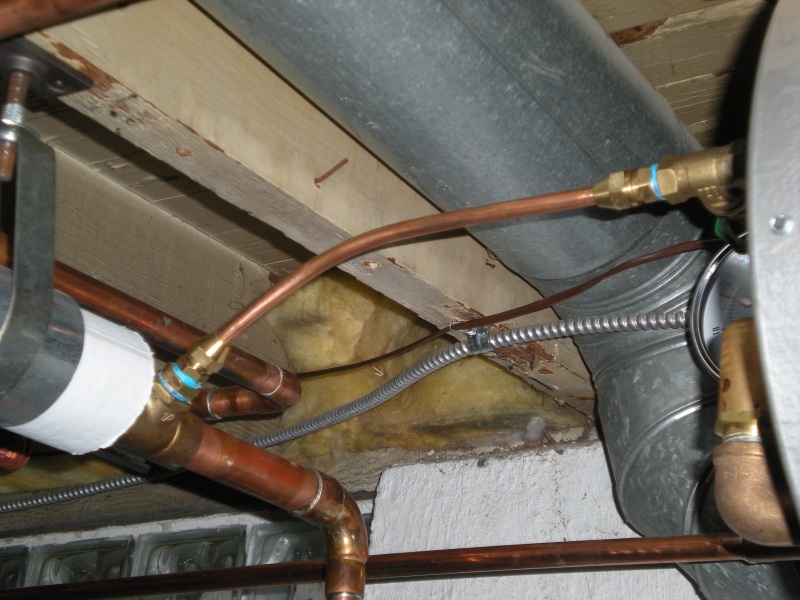

Steam supply tube to the heat exchanger.

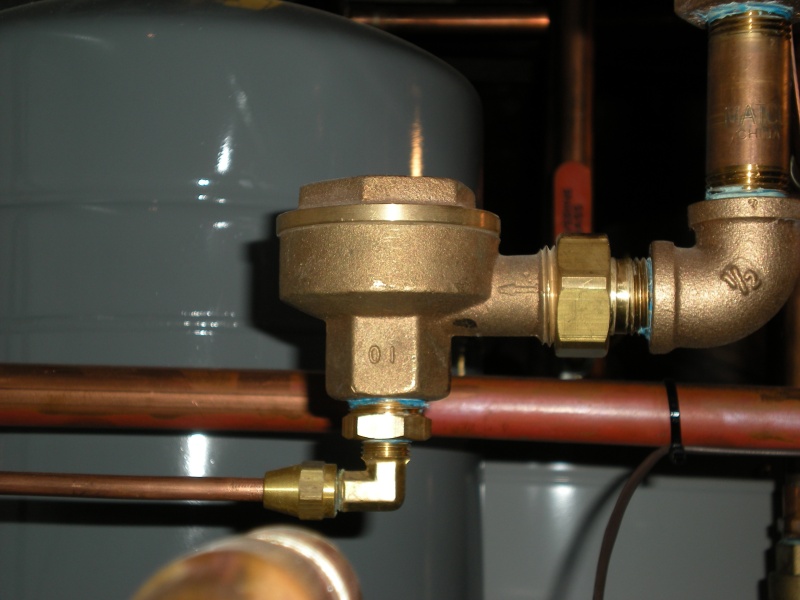

Heat exchanger trap with 1/4'' tube.

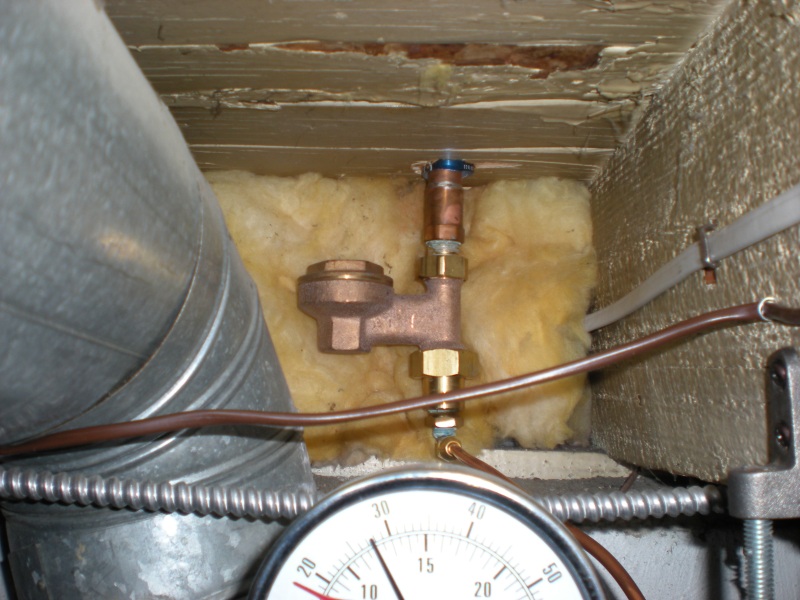

Kitchen trap below floor with 1/4'' tube.

Bedroom supply and return tubes entering and exiting the crawl space.

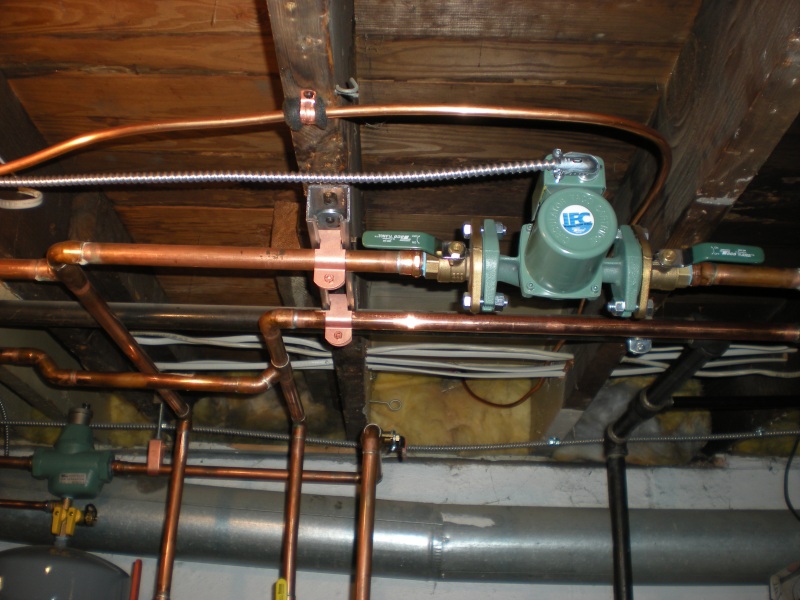

Point of origin of the living room supply tube.

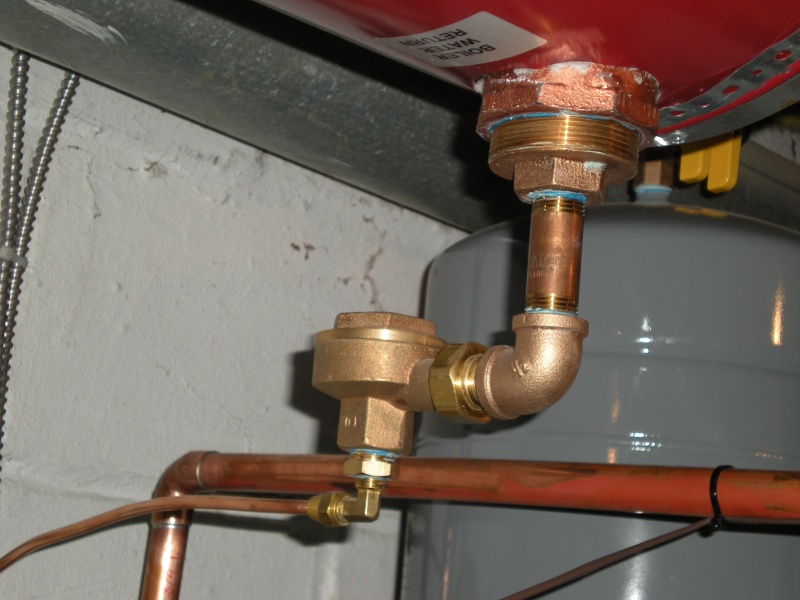

Another view of the heat exchanger trap.
