Beachwood Coal Boiler Replacement

This was interesting. First I didn't even know that there was steam present in the City of Beachwood. The house was up for sale and had a coal boiler still operating in it with an old gas conversion burner. The prospective buyer brought us in to evaluate the boiler. We said, 'well it doesn't leak, but the gas bills must be enormous'. We turned on the boiler and 40 minutes later the steam still had not arrived on the second floor. We were then contracted to replace the coal boiler with a modern steam boiler. We chose a SlantFin Galaxy for this job.

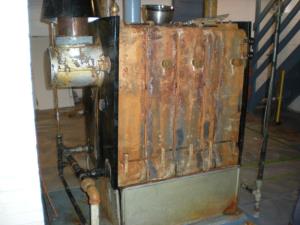

The original coal boiler.

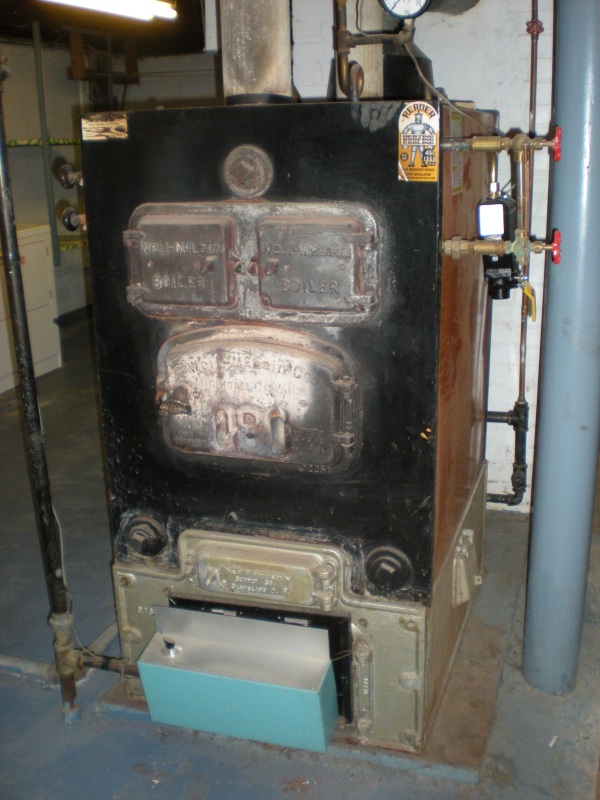

Original boiler.

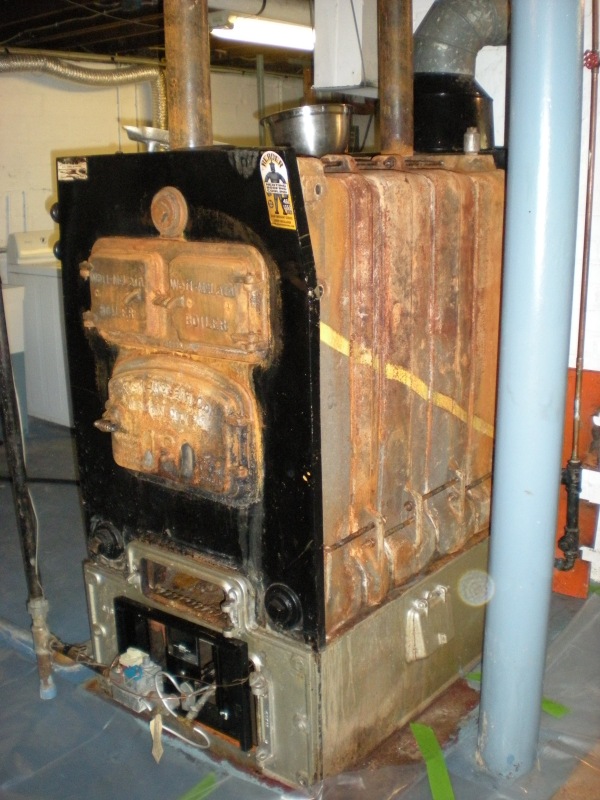

After asbestos removal.

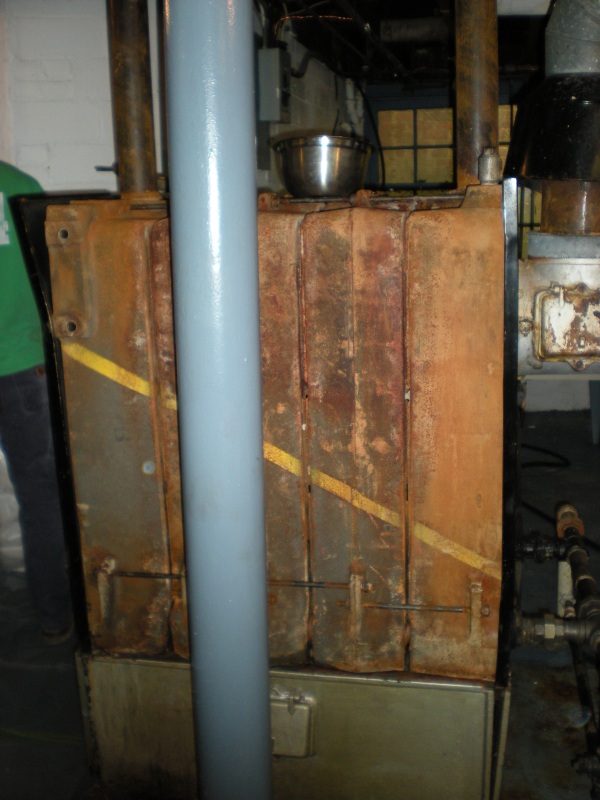

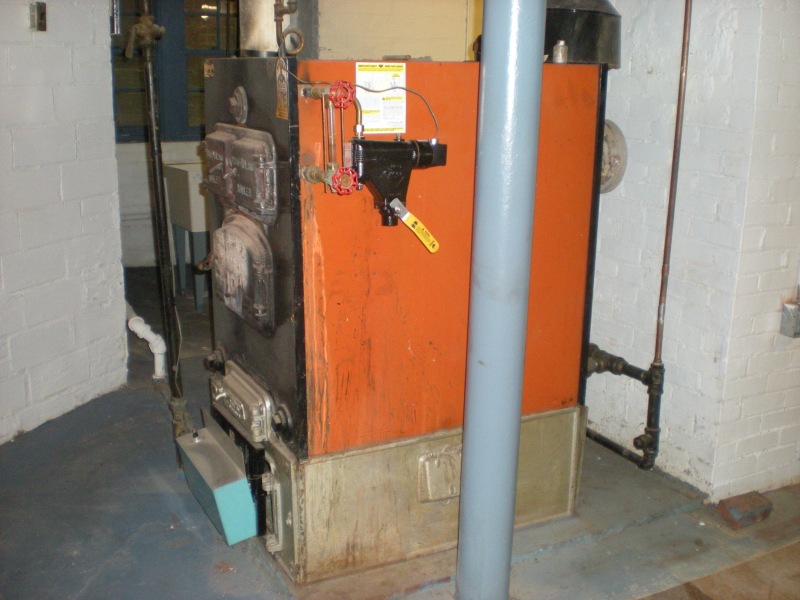

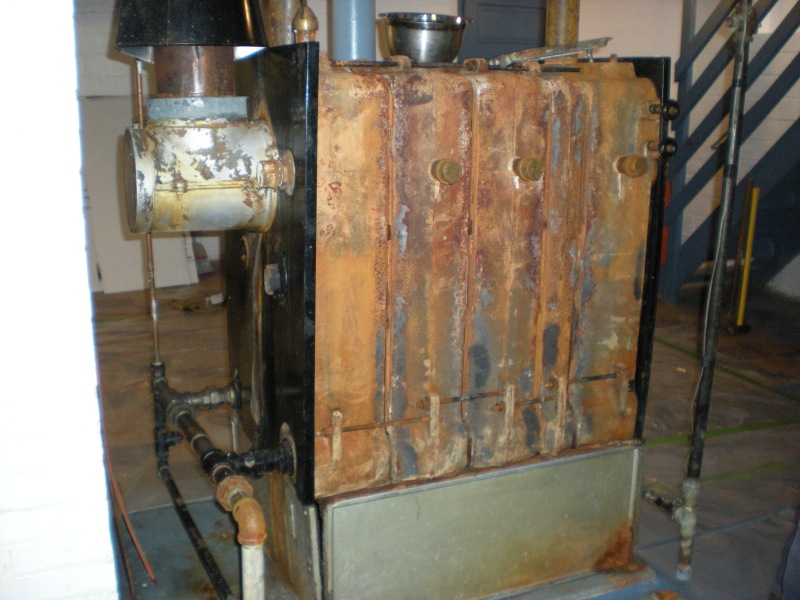

Side view of coal boiler. Big sections huh!

Opposite side view.

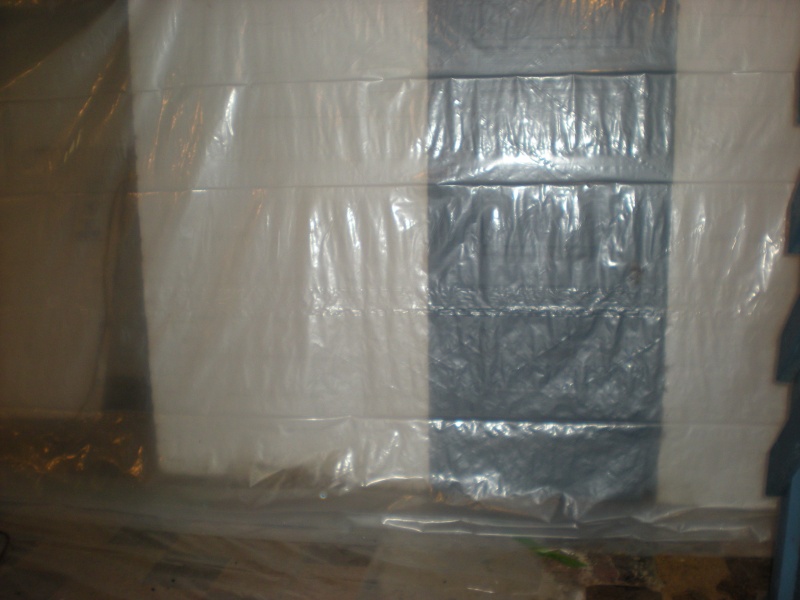

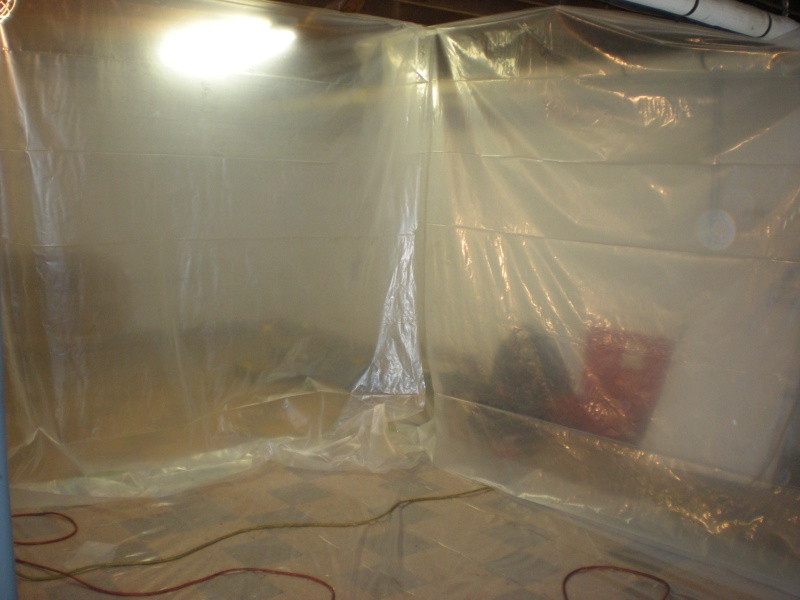

Plastic sheeting to control the flying muck.

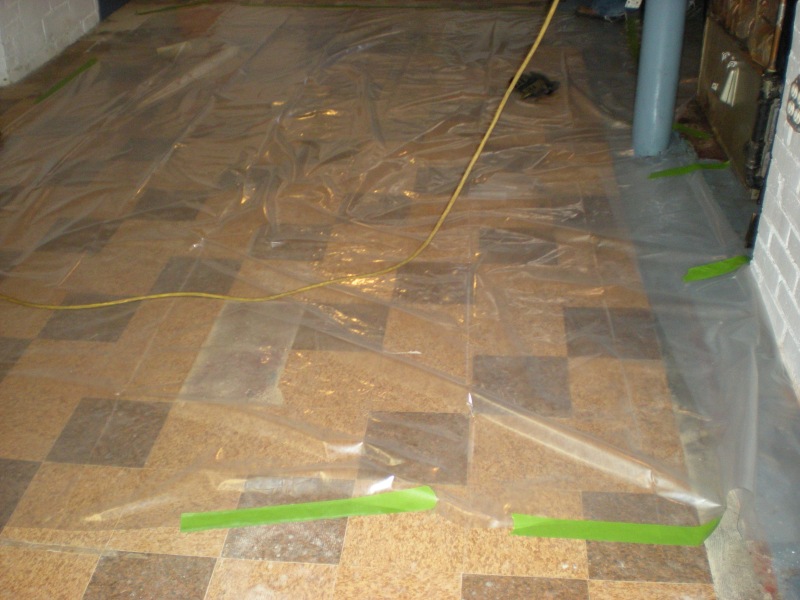

Plastic to keep schmutz off floor.

Preparation.

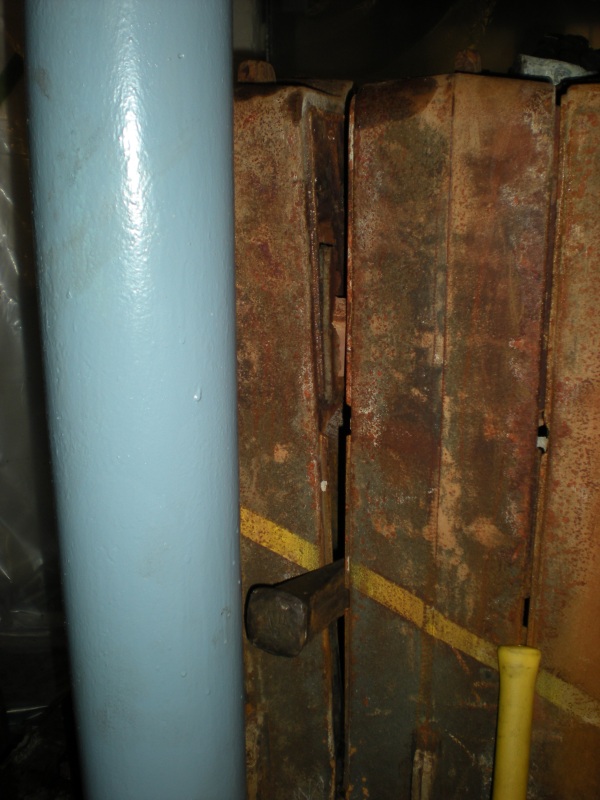

Wedge being driven into old boiler to split sections apart.

Bricks that were in the old boilers flue ways.

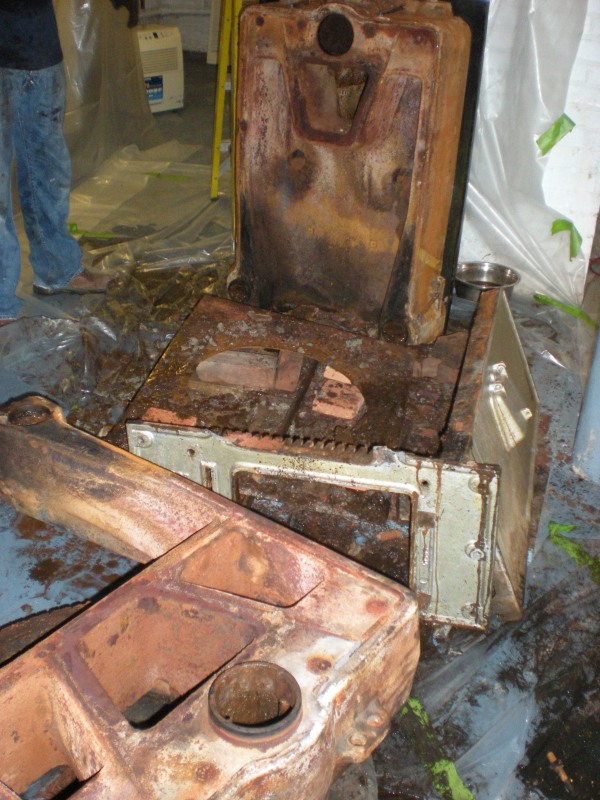

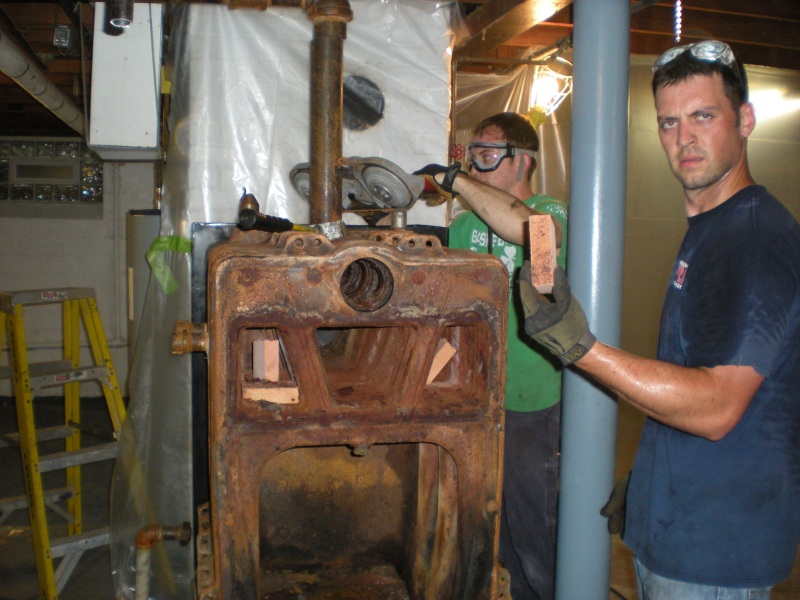

Sections being removed.

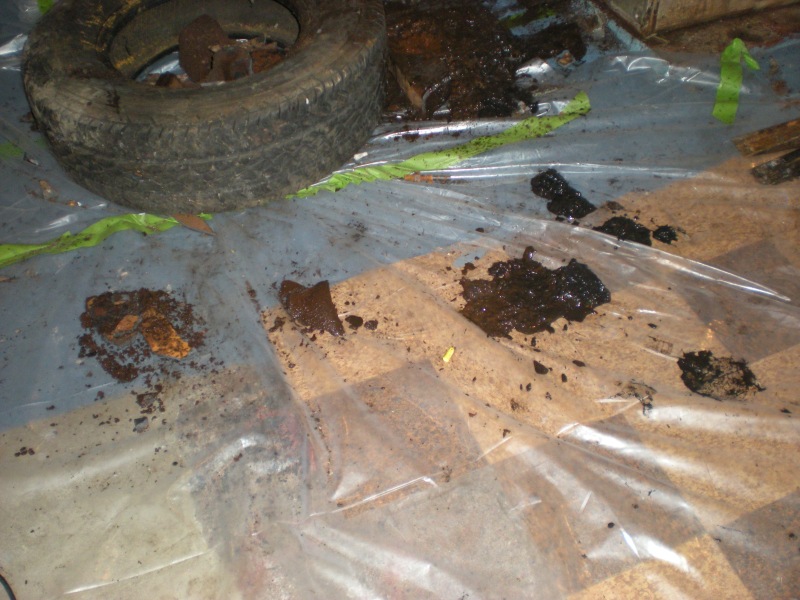

Crud from inside the boiler.

Taking apart a coal boiler is messy business.

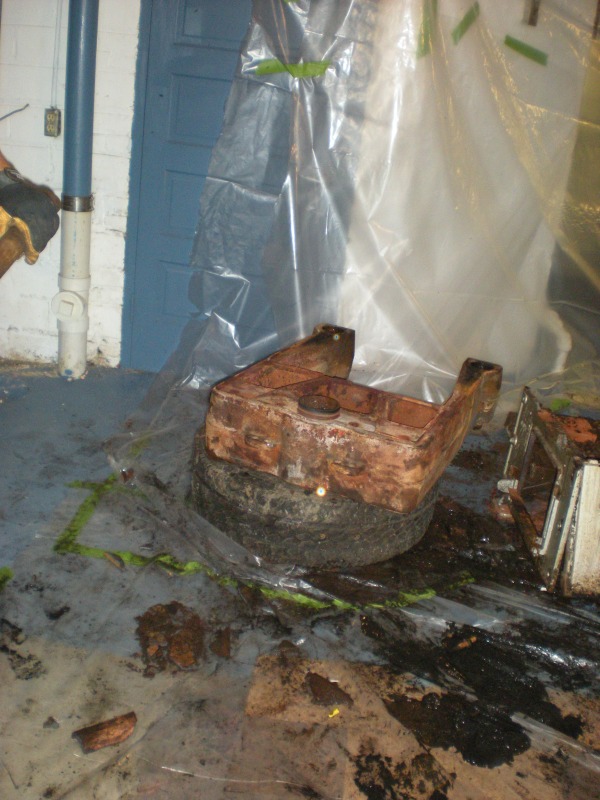

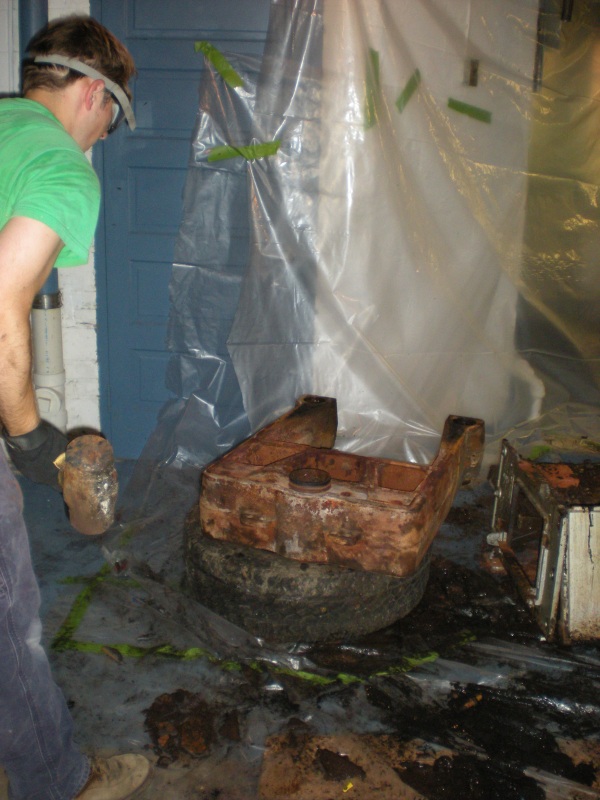

Section on tire ready for the sledge hammer.

25 pound sledge hammer is handy.

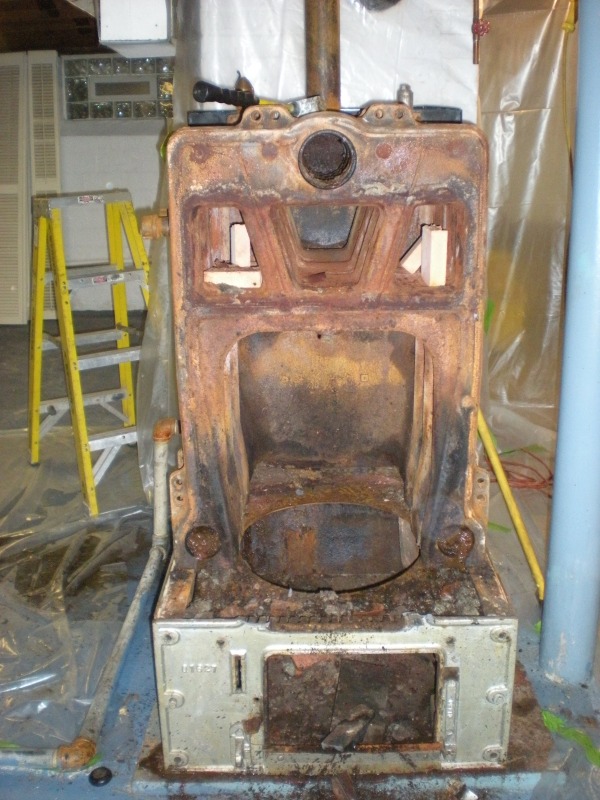

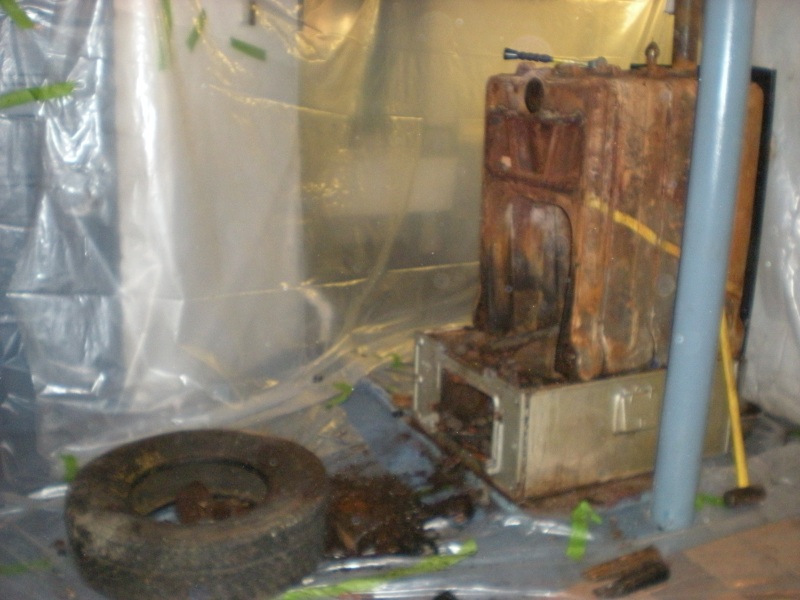

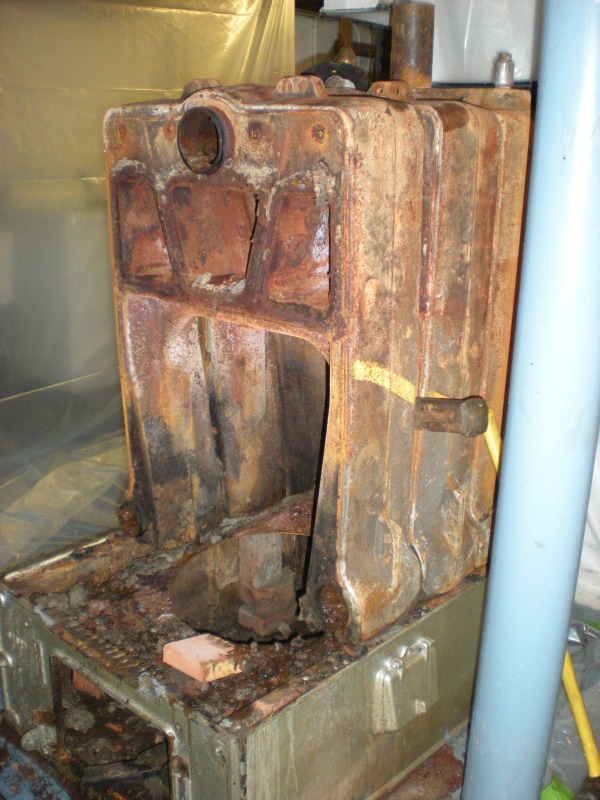

Front view of inside of coal boiler during disassembly.

Disassembly.

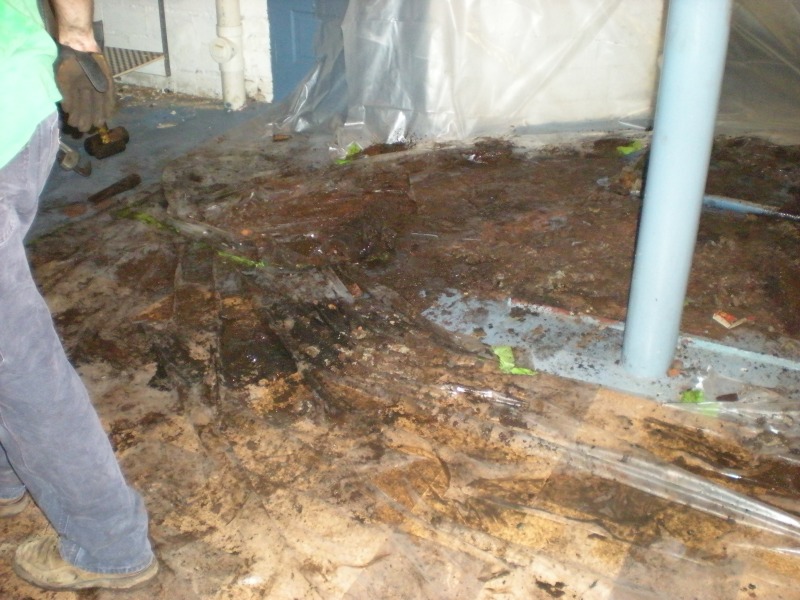

Clean up time. Its ugly taking apart a coal boiler.

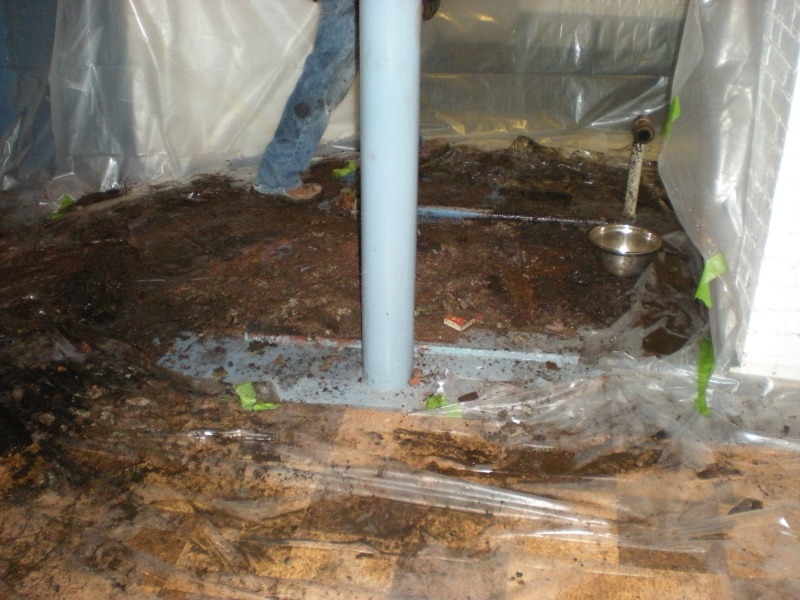

Oh what a mess.

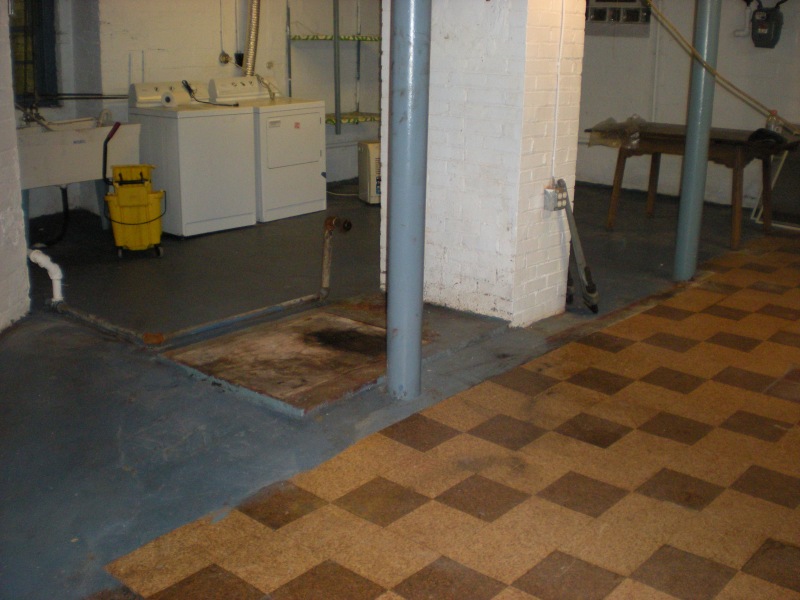

Basement after the removal of the old boiler.

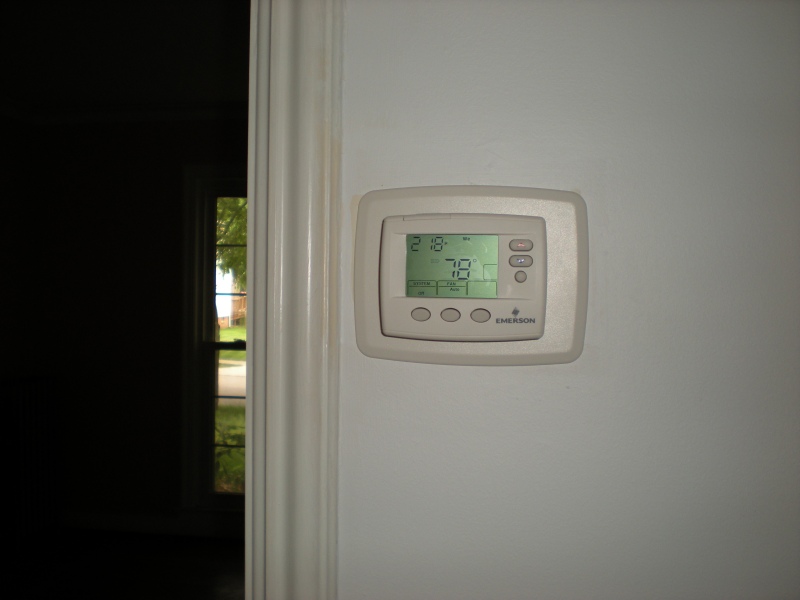

New boiler deserves a new thermostat.

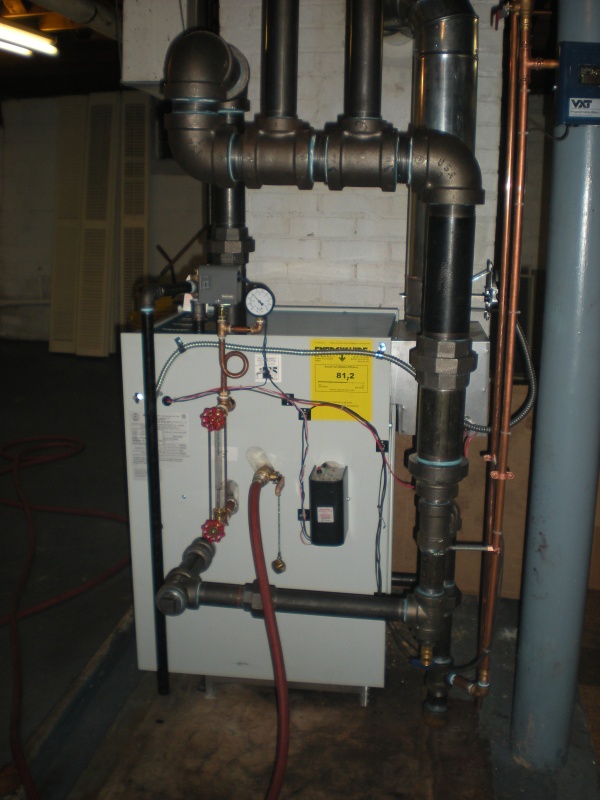

Side view of completed boiler. Skimming in progress.

Skimming the boiler.

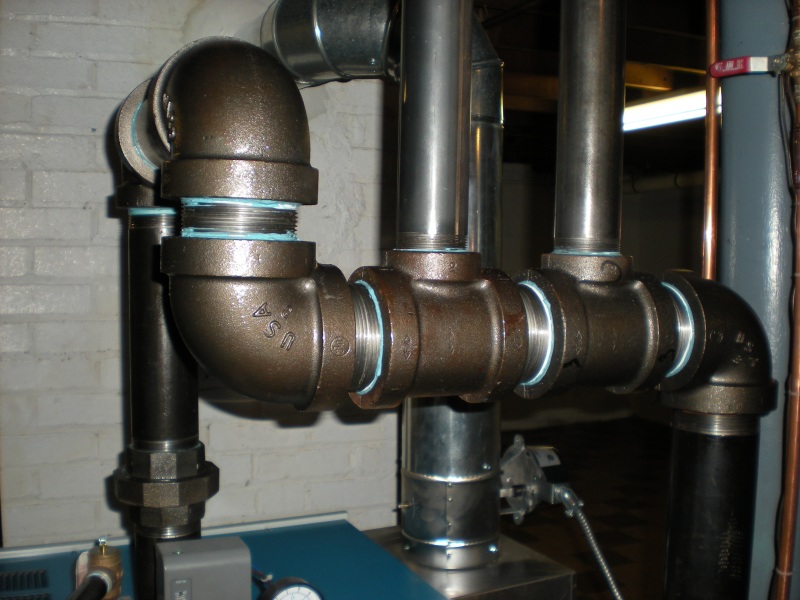

Header and the takeoff risers.

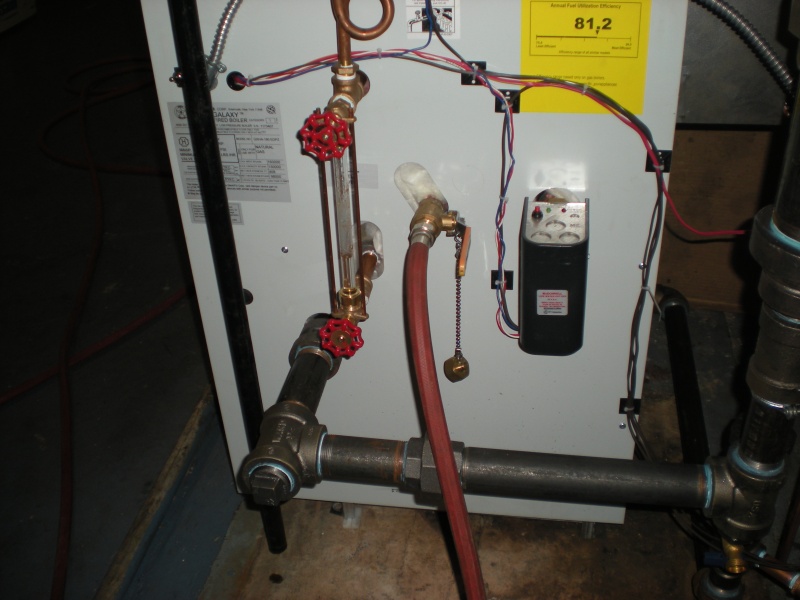

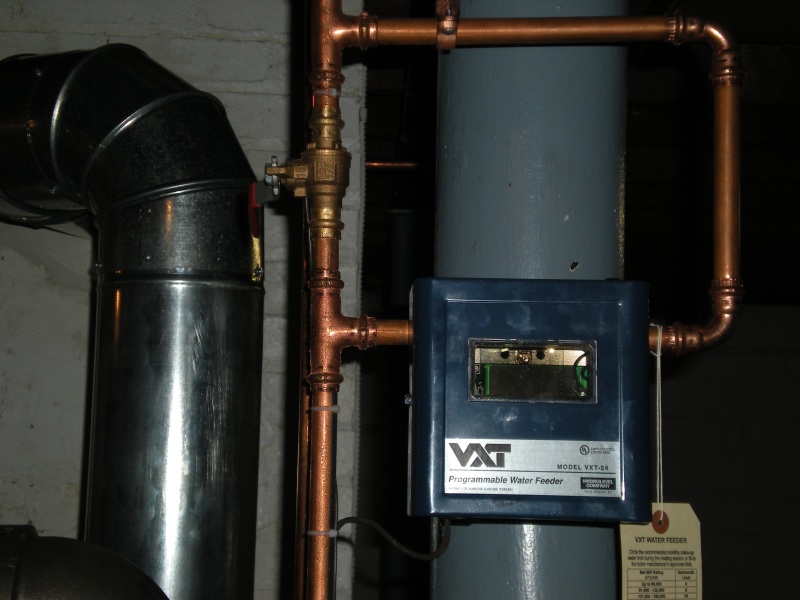

Hydrolevel VXT feeder.

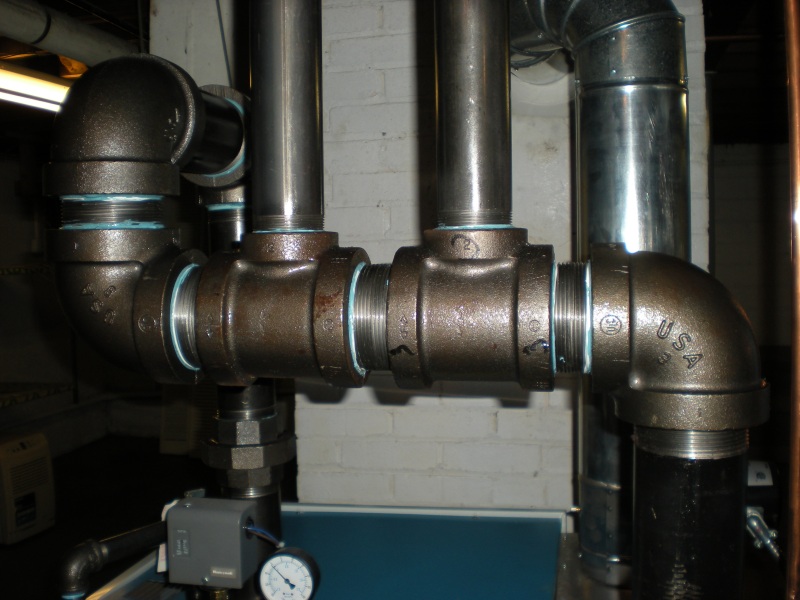

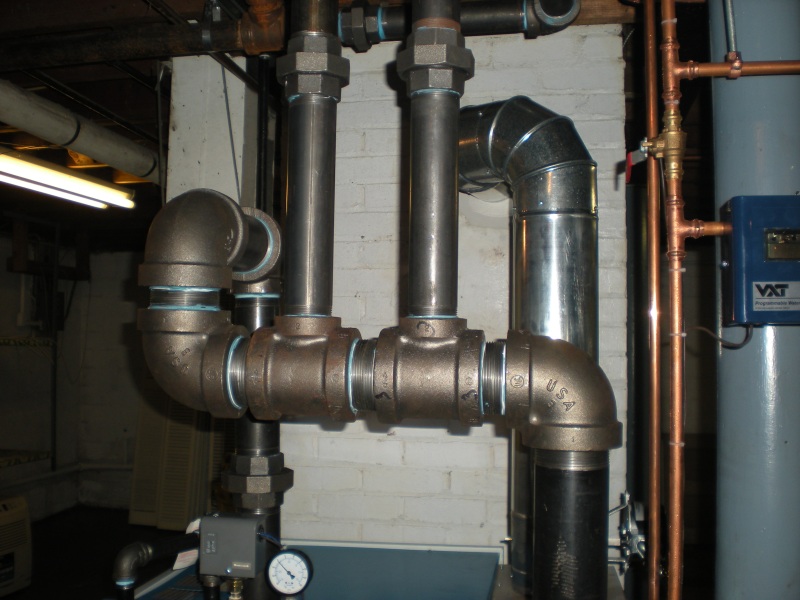

Front view of header.

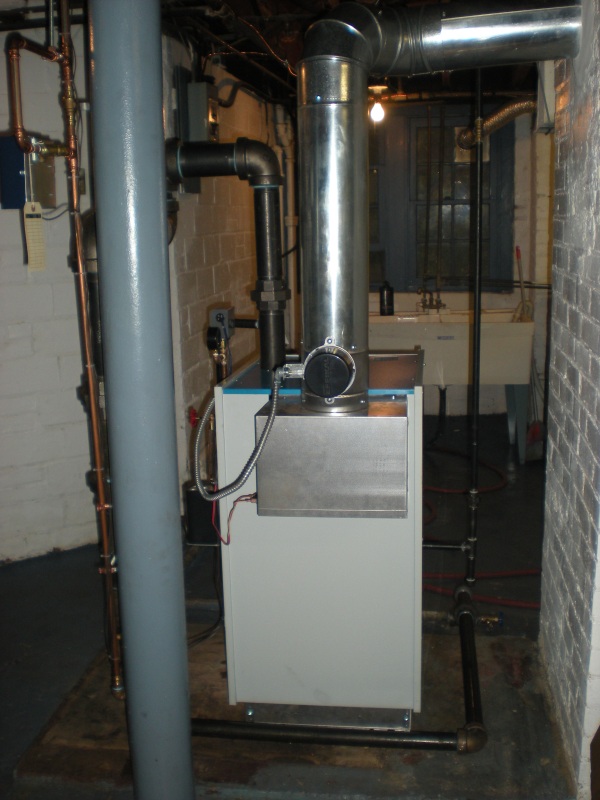

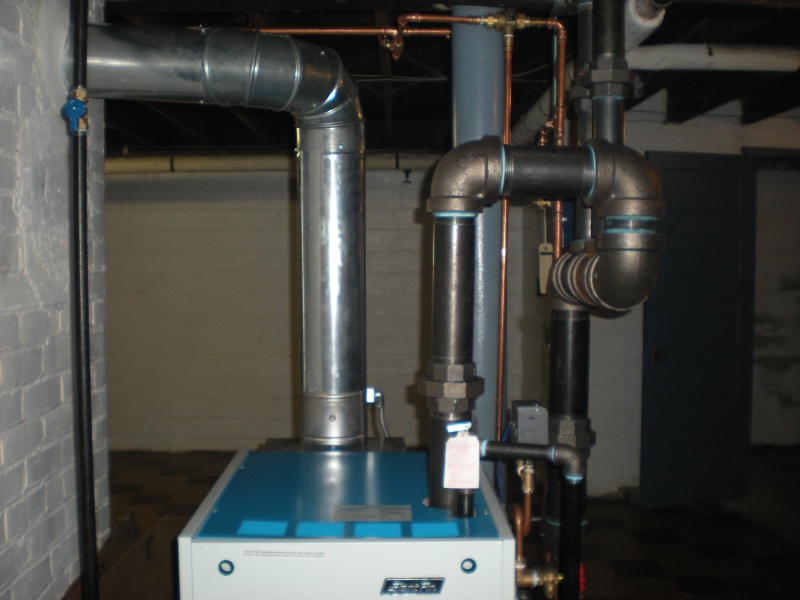

Rear view of completed boiler.

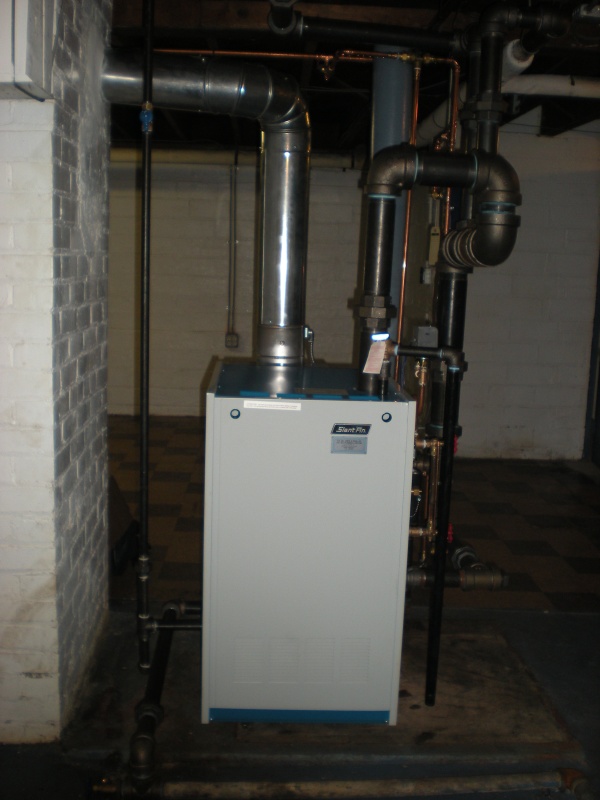

Front view of completed boiler.

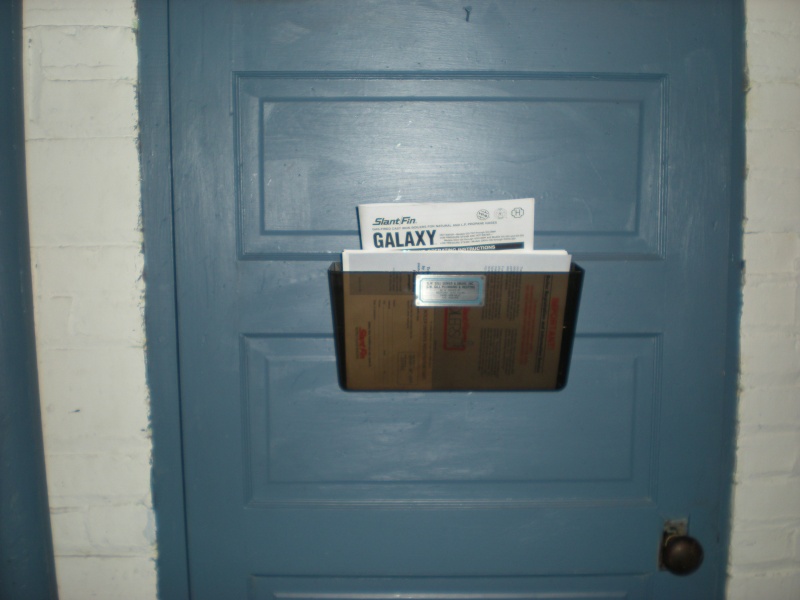

Literature holder mounted on coal room door.

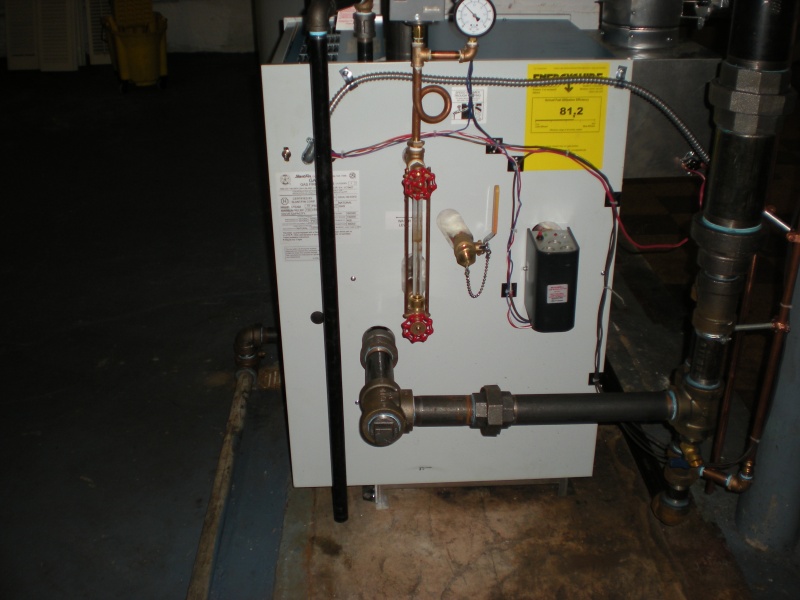

Side view close up.

Drop header close up.

Full size equalizer drop from header.
