S. Overlook Boiler Install

This job was a gravity hot water to pumped hot water conversion. What was there was a coal boiler with a conversion burner in it. The job was made somewhat difficult by the presence of a sanitary soil stack on the right side of the wall the boiler was to be mounted to, and a waterheater sitting inches off the wall that we were going to have to pipe around. The house is rental property so it was a budget job. We were actually surprised the homeowner wanted to spend the extra money on a modulating boiler instead of the cast iron ones most landlords want to put in. Its actually a smart move on his part. But being on a budget we couldn't move the waterheater to the corner which would have made a nicer ''canvas'' of the wall. This is a Trinity boiler.

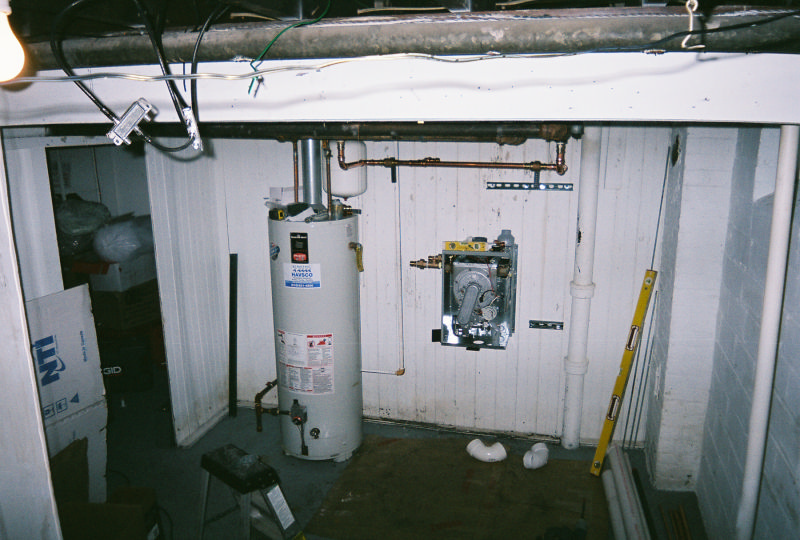

Getting started.

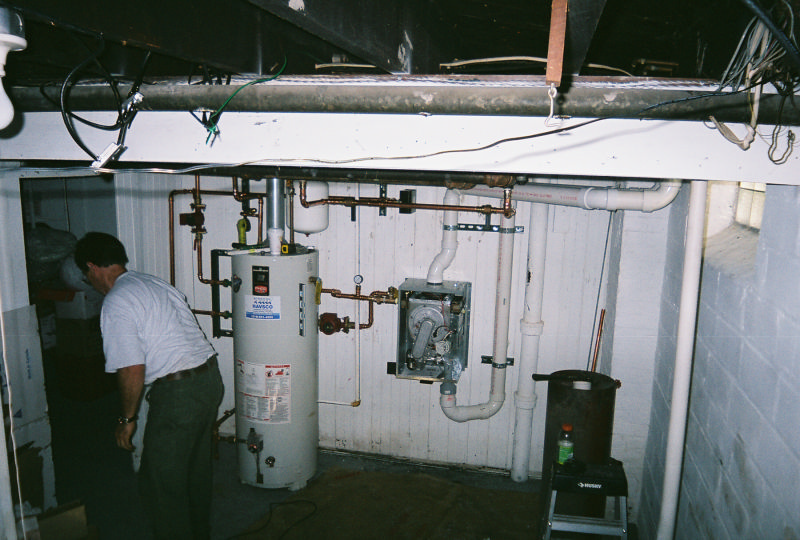

Progress.

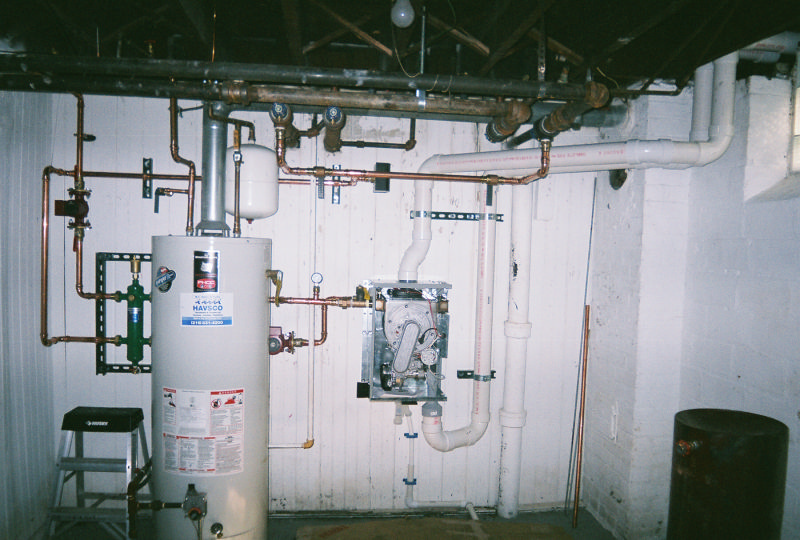

Most of the piping done.

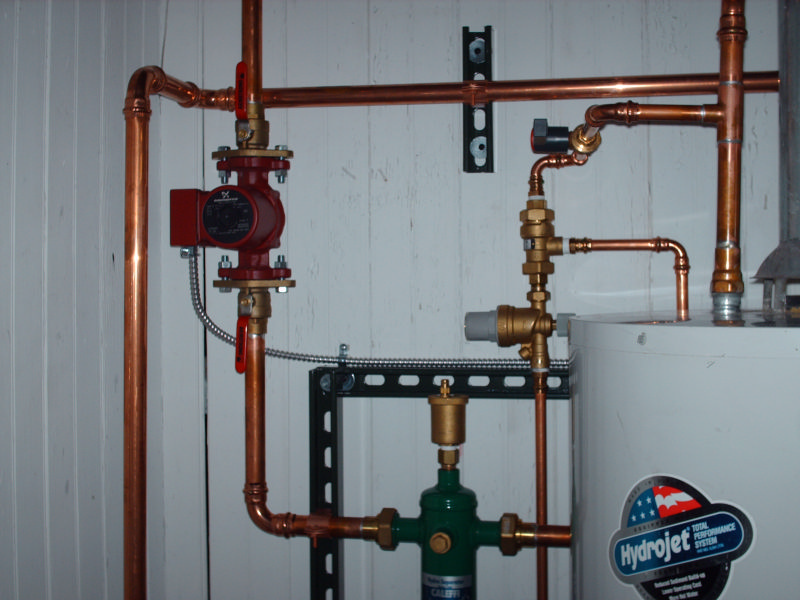

Piping around the waterheater.

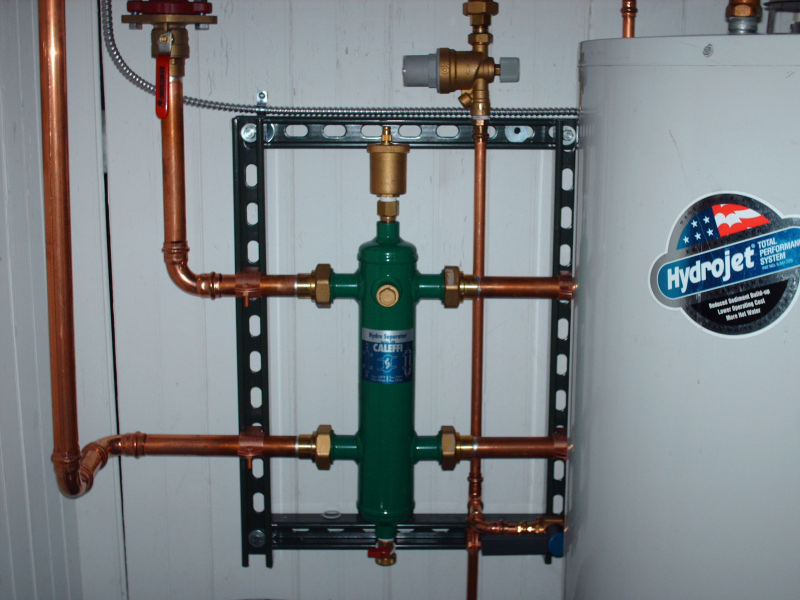

Hydraulic seperator.

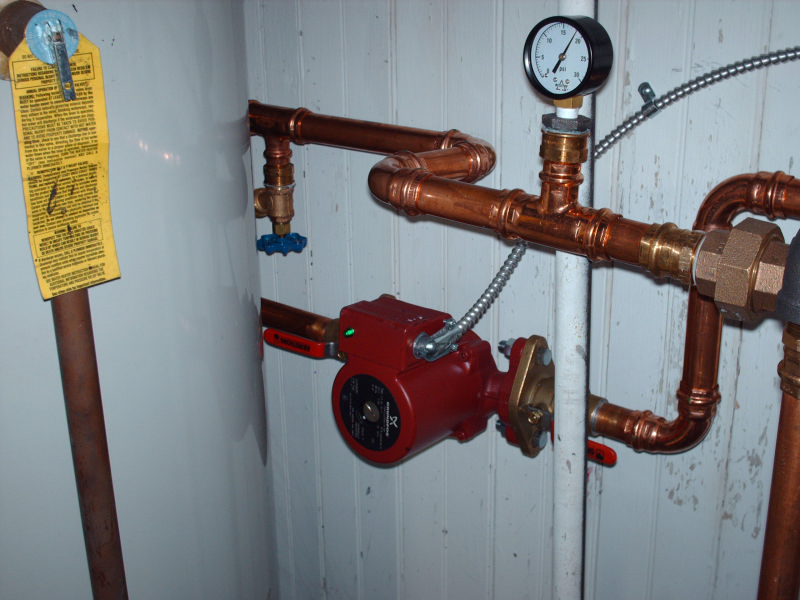

System pump.

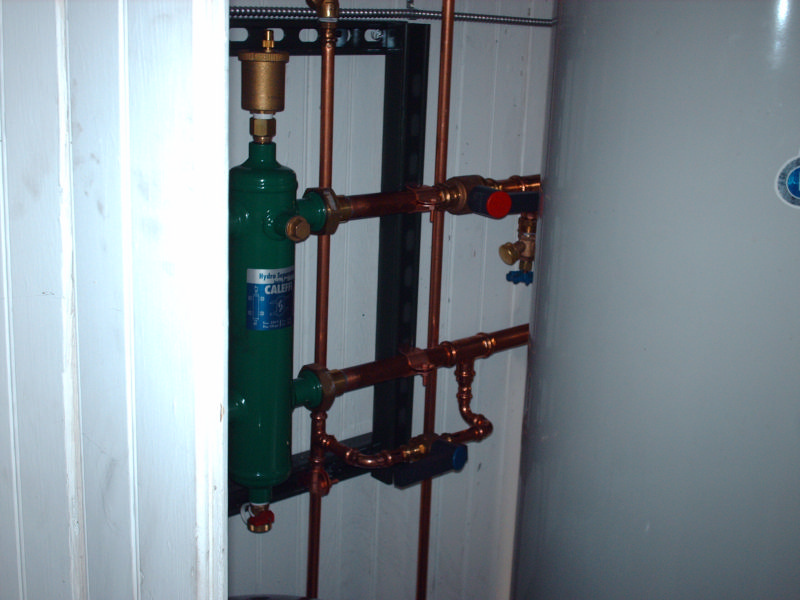

Another view of getting around the waterheater.

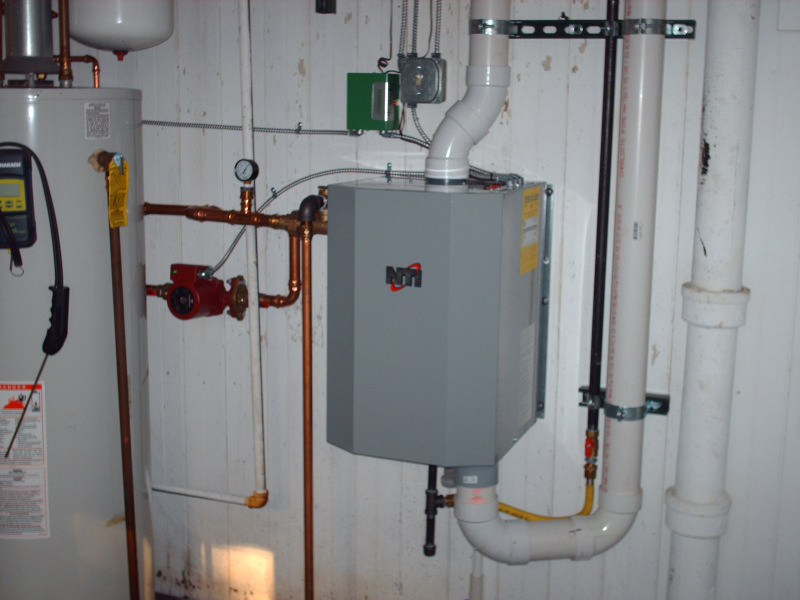

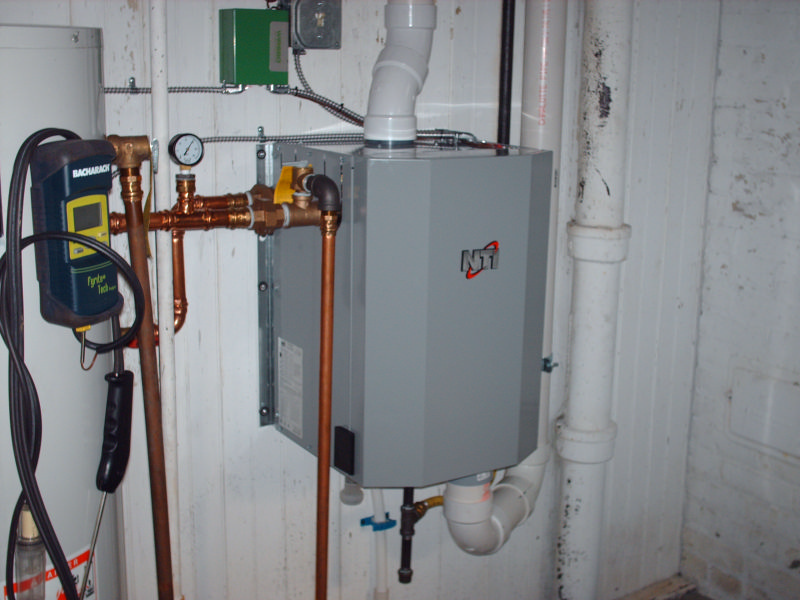

Installed boiler.

Another view of the installed boiler.

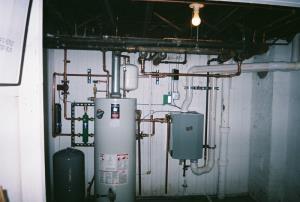

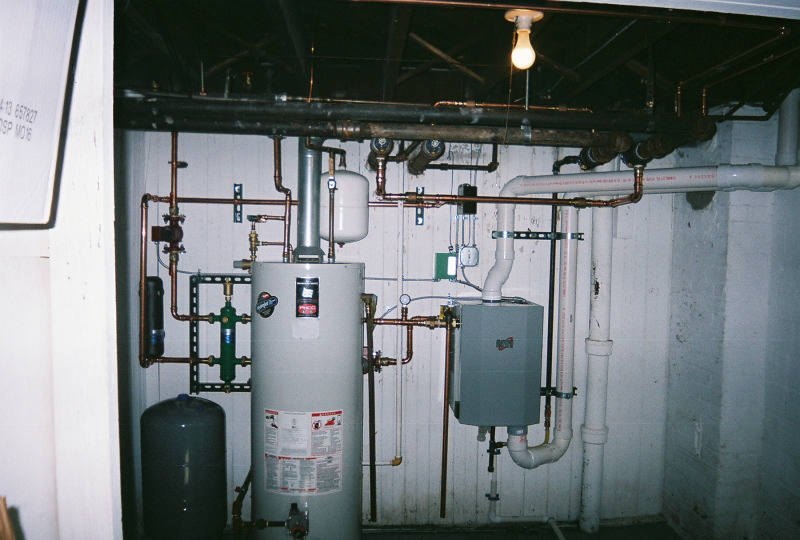

Completed installation.
